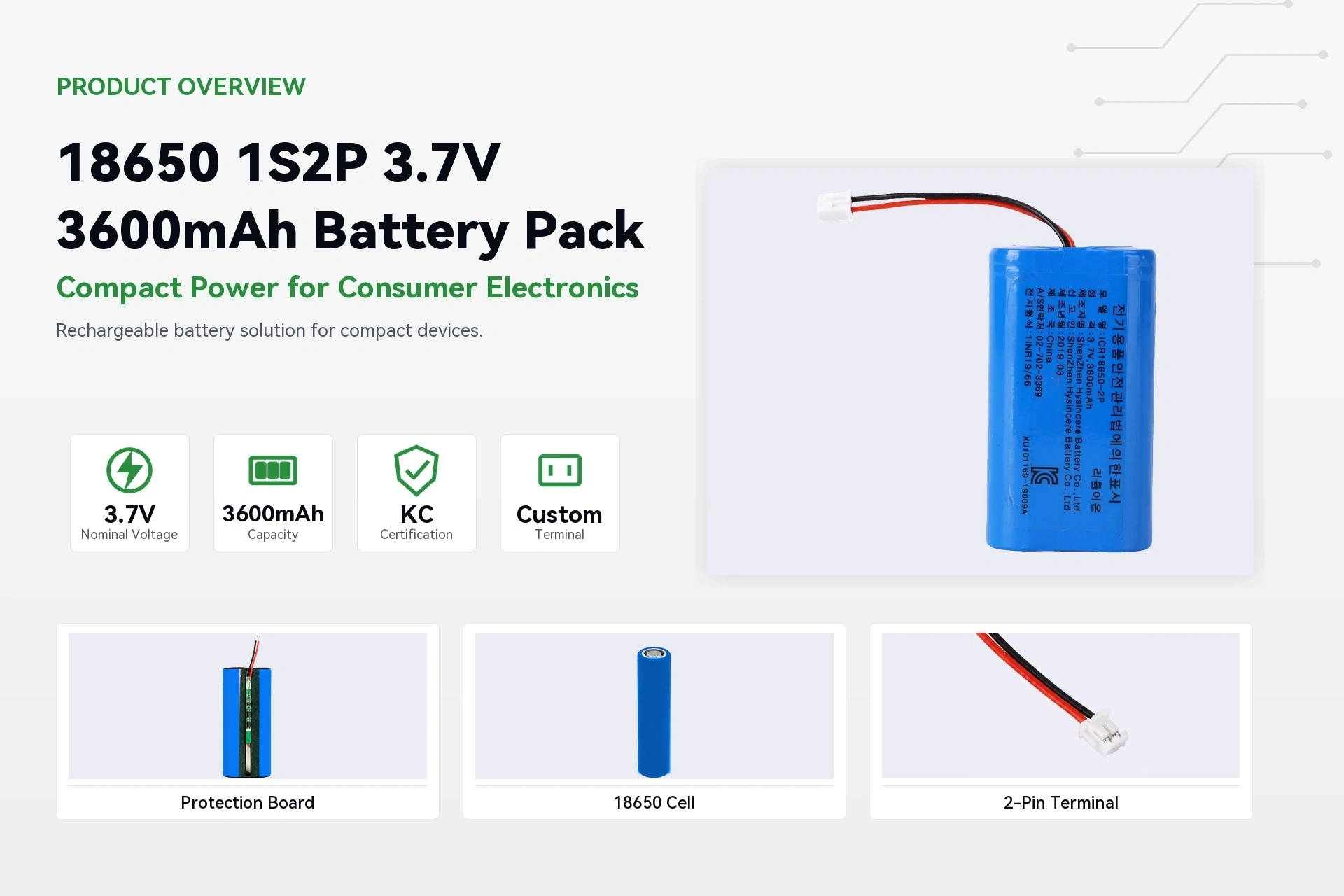

18650 1S2P 3600mAh

The 18650 1S2P 3600mAh is specified at 3.7V nominal voltage with 3600mAh nominal capacity and 13.32Wh rated energy. Its maximum charge voltage is 4.2V, and the discharge cut-off voltage is 2.75V.

The 18650 1S2P 3600mAh is suitable for higher-capacity 1S2P 18650 battery pack applications. Final use should be confirmed according to voltage, capacity, discharge current, connector type and device space requirements.

The 18650 1S2P 3600mAh supports up to 2A maximum charge current, 2A maximum continuous discharge current and 4A maximum peak discharge current for 5 seconds. The actual operating current should stay within the device and BMS design limits.

The 18650 1S2P 3600mAh supports charging within 0~45°C and discharging within -20~+60°C. The catalog cycle life is ≥500 cycles at 25°C, 0.5C and 100% DOD under test conditions.

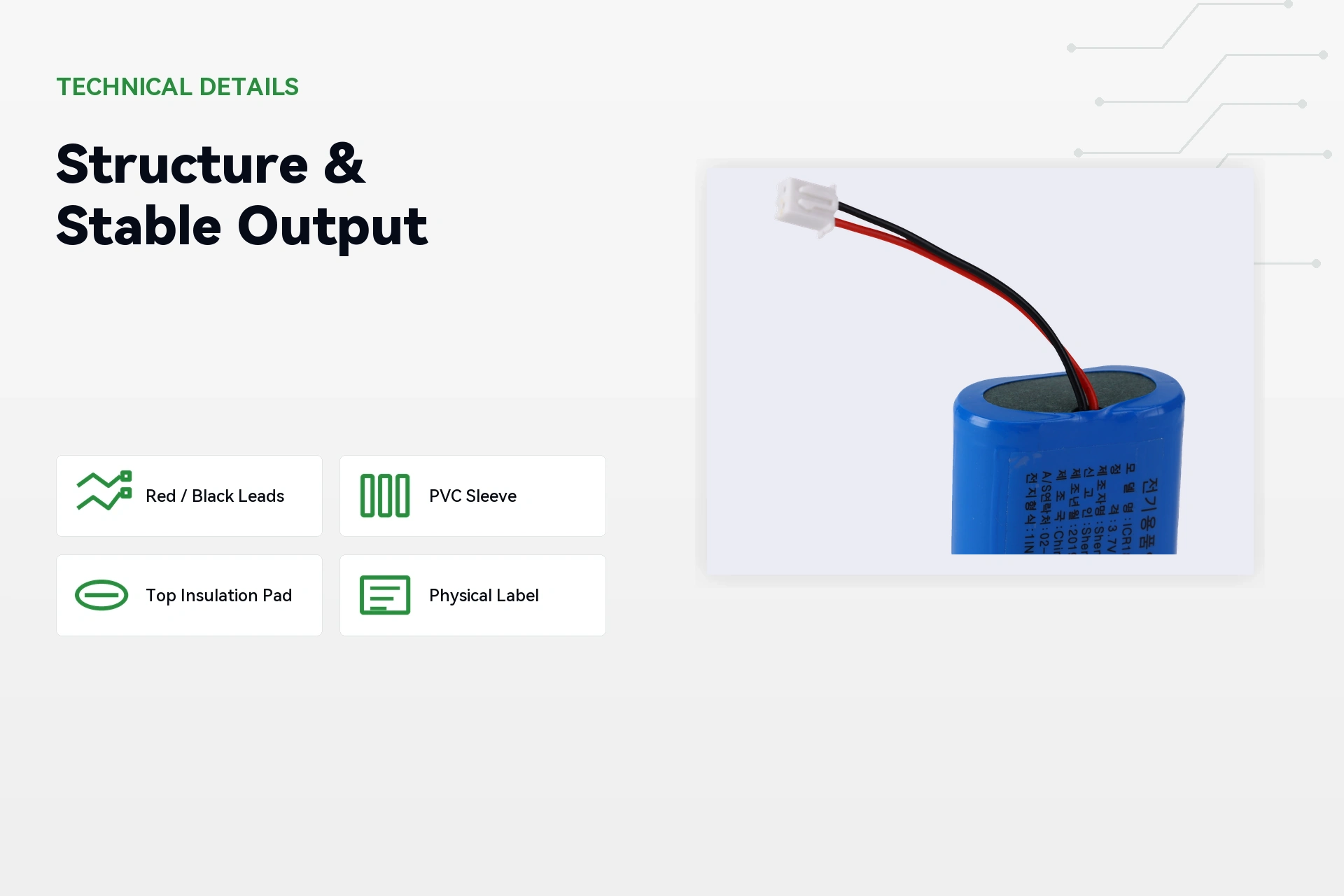

The 18650 1S2P 3600mAh has a listed dimension of 20*38*67mm and an approximate weight of 92g. For OEM projects, the custom pack configuration, wire length, terminal direction and enclosure layout can be reviewed according to the final device structure.
