18650 2S1P 3000mAh Li-ion Battery Pack

The 18650 2S1P 3000mAh is intended for consumer electronics and OEM devices requiring a 2-series Li-ion pack. Its listed core specifications are 7.2V nominal voltage, 3000mAh nominal capacity, 21.6Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

Use a charger whose chemistry, voltage and current settings match the 18650 2S1P 3000mAh. The listed charging limits are maximum charge voltage 8.4V. Charger profile, connector polarity and BMS settings should be verified before use.

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 5.0V, maximum continuous discharge current 4A, 5-second peak current 8A, cycle life ≥500. Cable gauge, fusing and protection settings must be sized for the complete system.

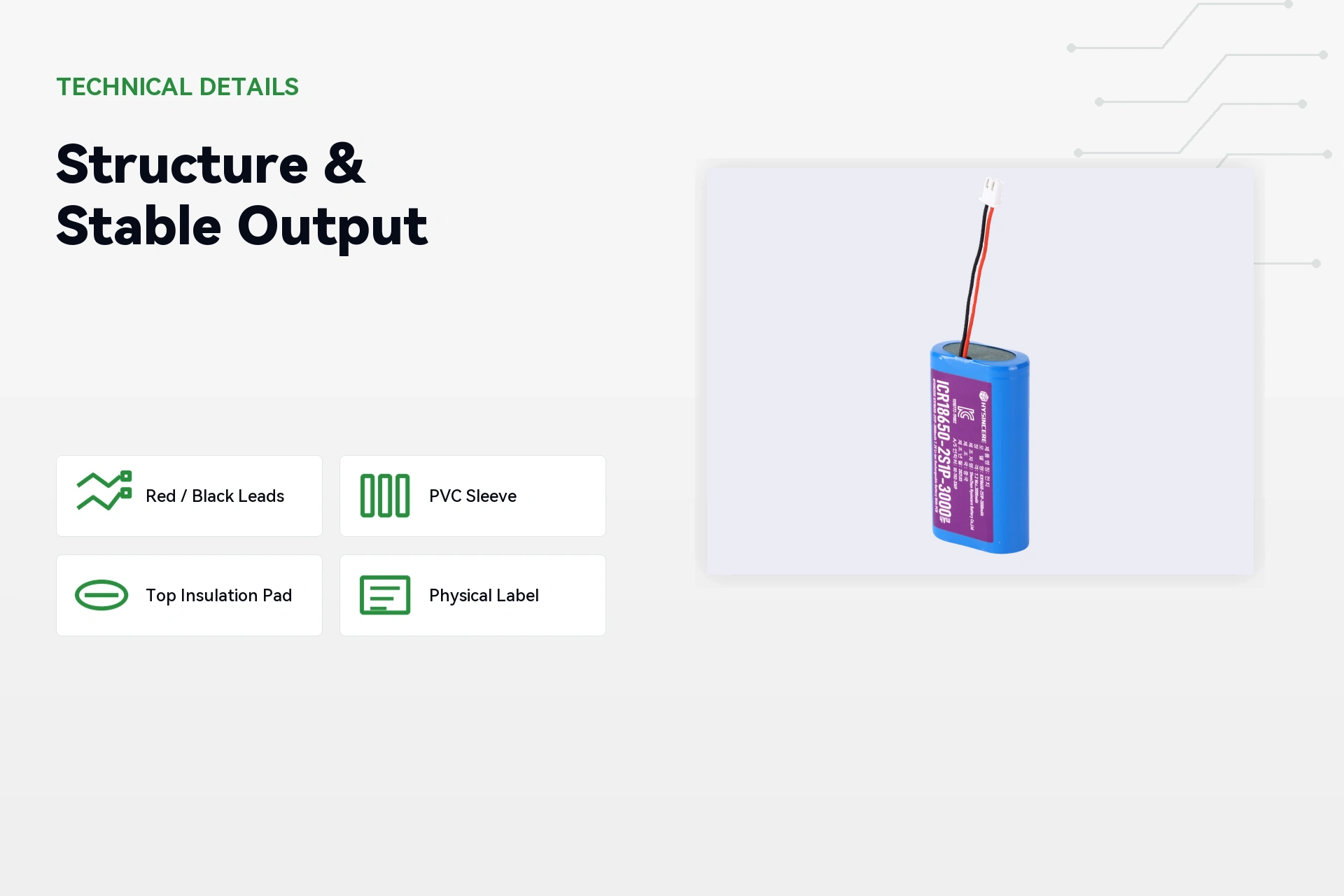

For the 18650 2S1P 3000mAh, the listed physical and environmental specifications are dimensions 20*38*67mm, weight 96g, charge temperature 0~45°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Hysincere can review the 18650 2S1P 3000mAh for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
