18650 3S1P 3000mAh

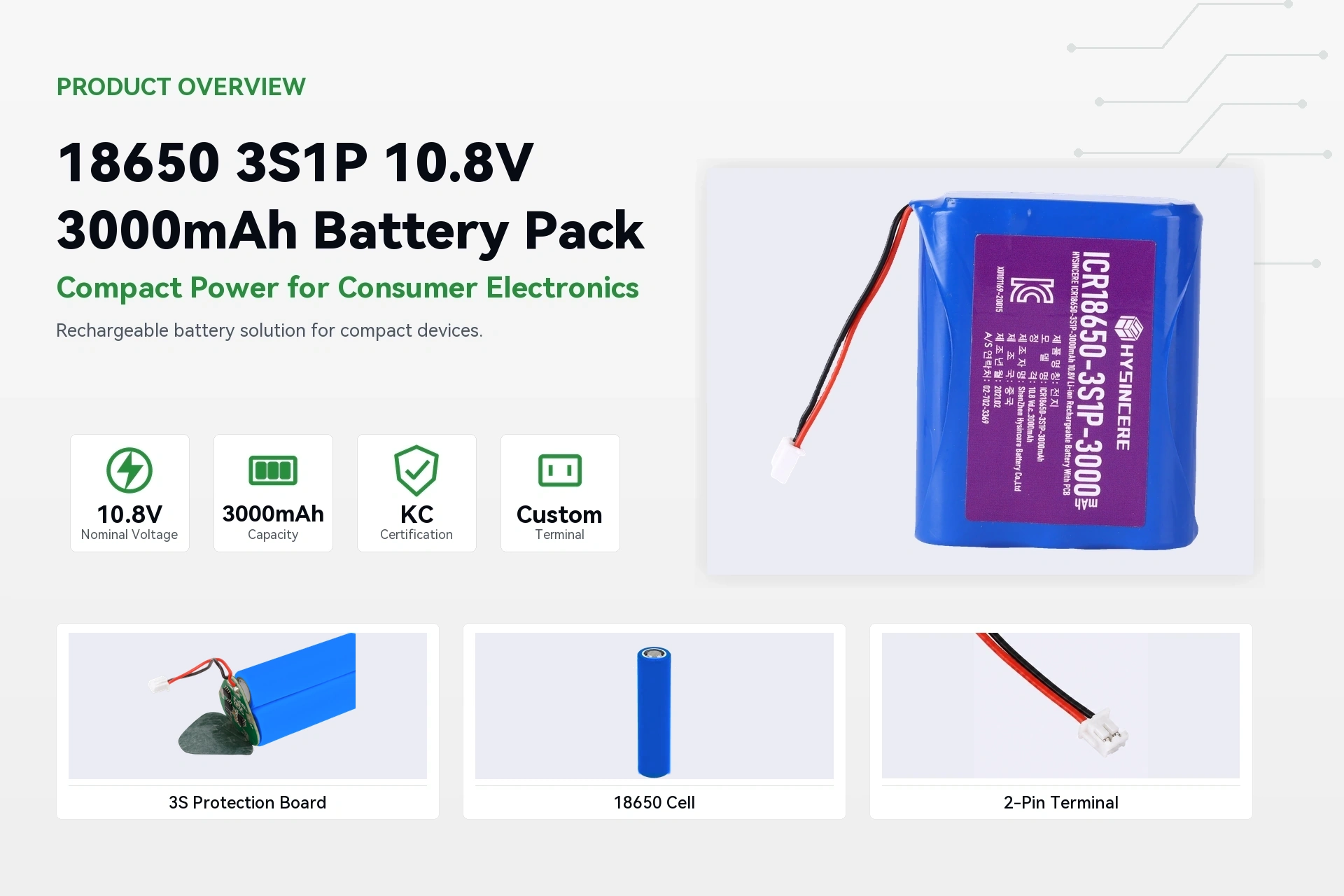

The 18650 3S1P 3000mAh is specified at 10.8V nominal voltage with 3000mAh nominal capacity and 32.4Wh rated energy. Its maximum charge voltage is 12.6V, and the discharge cut-off voltage is 8.1V.

The 18650 3S1P 3000mAh is suitable for 11.1V 3S1P 18650 battery pack applications. Final use should be confirmed according to voltage, capacity, discharge current, connector type and device space requirements.

The 18650 3S1P 3000mAh supports up to 3A maximum charge current, 4A maximum continuous discharge current and 8A maximum peak discharge current for 5 seconds. The actual operating current should stay within the device and BMS design limits.

The 18650 3S1P 3000mAh supports charging within 0~45°C and discharging within -20~+60°C. The catalog cycle life is ≥500 cycles at 25°C, 0.5C and 100% DOD under test conditions.

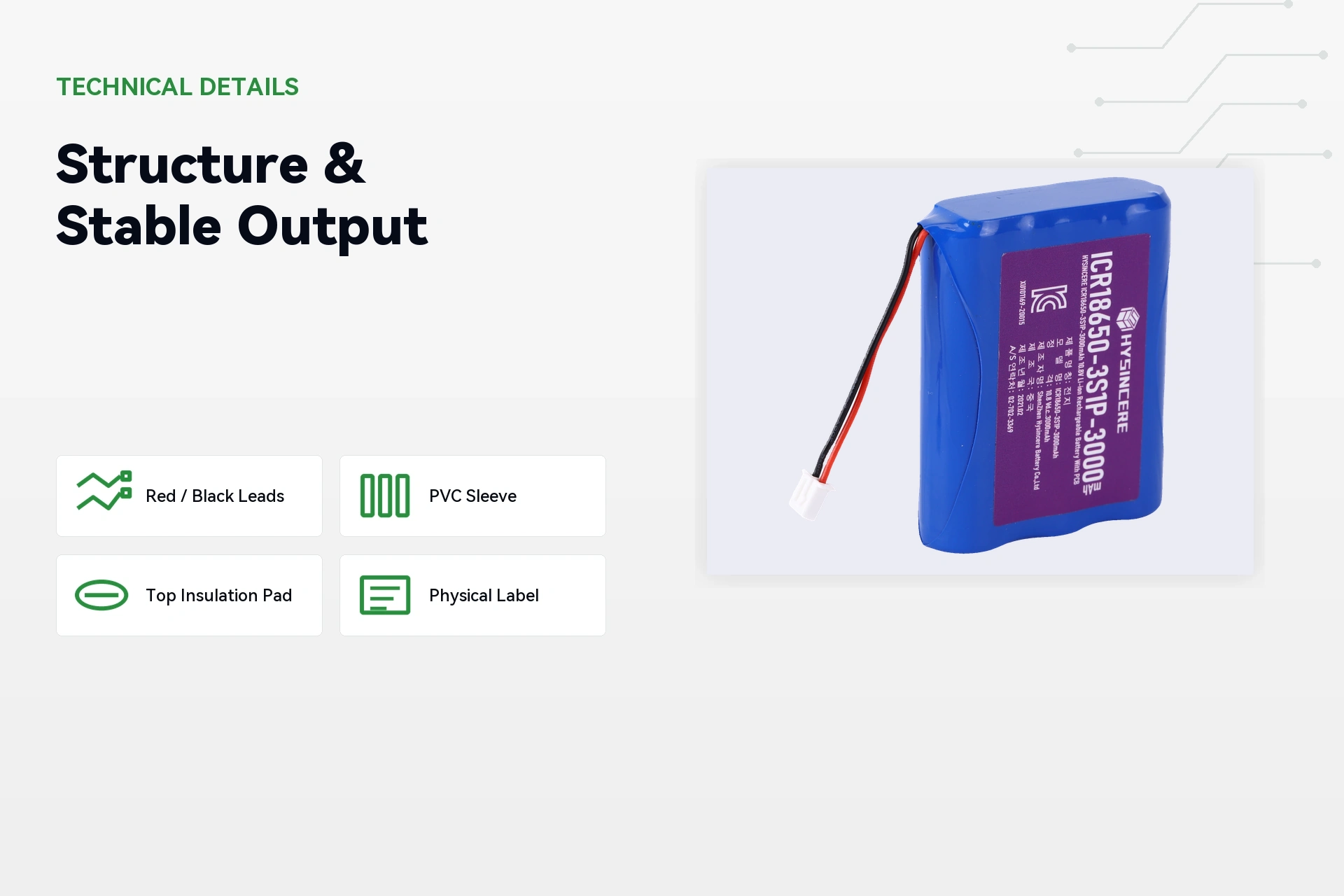

The 18650 3S1P 3000mAh has a listed dimension of 20*56*70mm and an approximate weight of 146g. For OEM projects, the custom pack configuration, wire length, terminal direction and enclosure layout can be reviewed according to the final device structure.
