Product Features

Stable Power Output

Delivers 3840Wh rated energy for RV solar storage, home backup power and smart battery monitoring applications.

Smart LCD Data Display

Built with a Smart LCD screen for accurate battery data display and easier on-site battery monitoring.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 200A continuous discharge and 400A peak discharge for demanding loads.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term LiFePO4 replacement power.

hysincere-smart-lcd-screen-series-rv-solar-application-scenario-detail

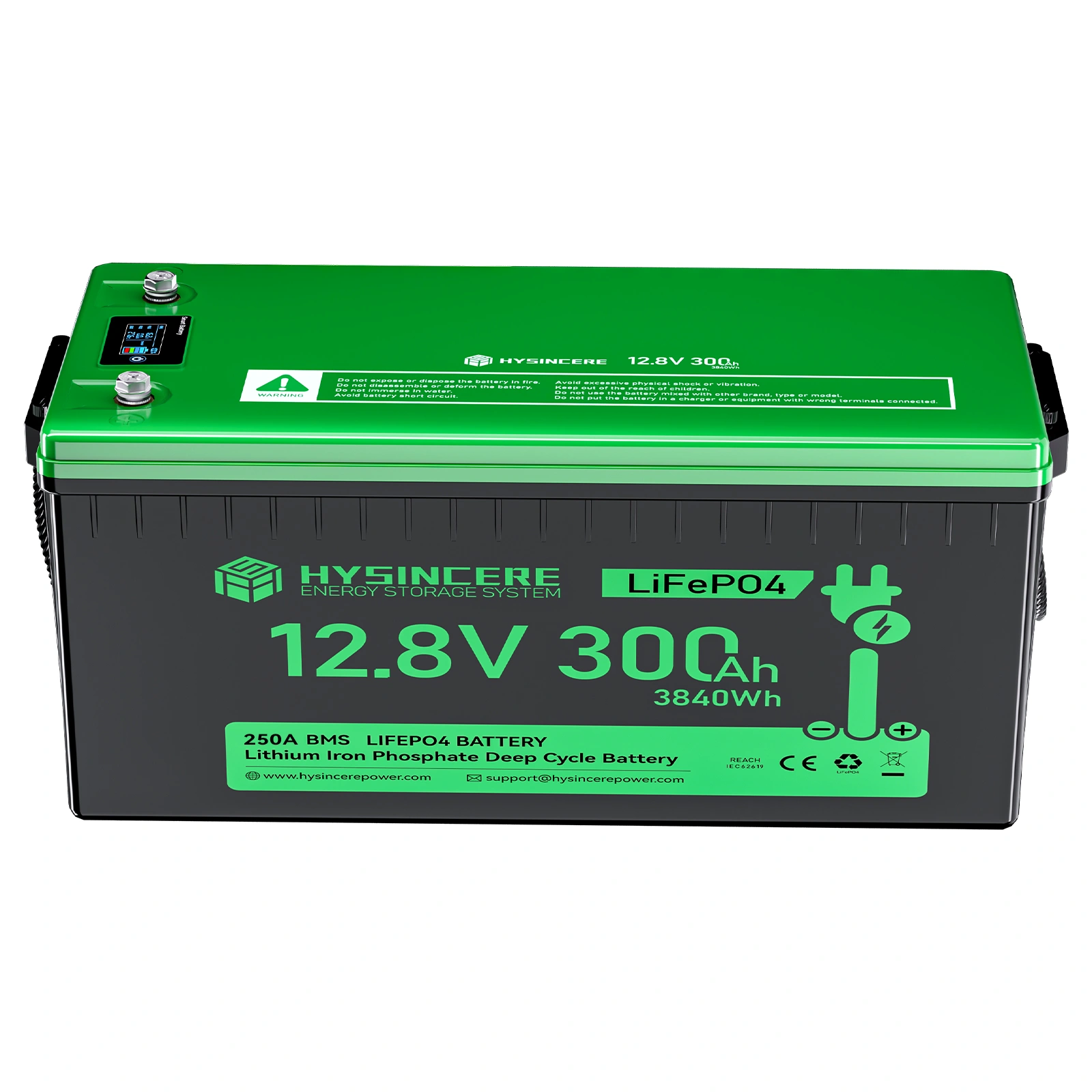

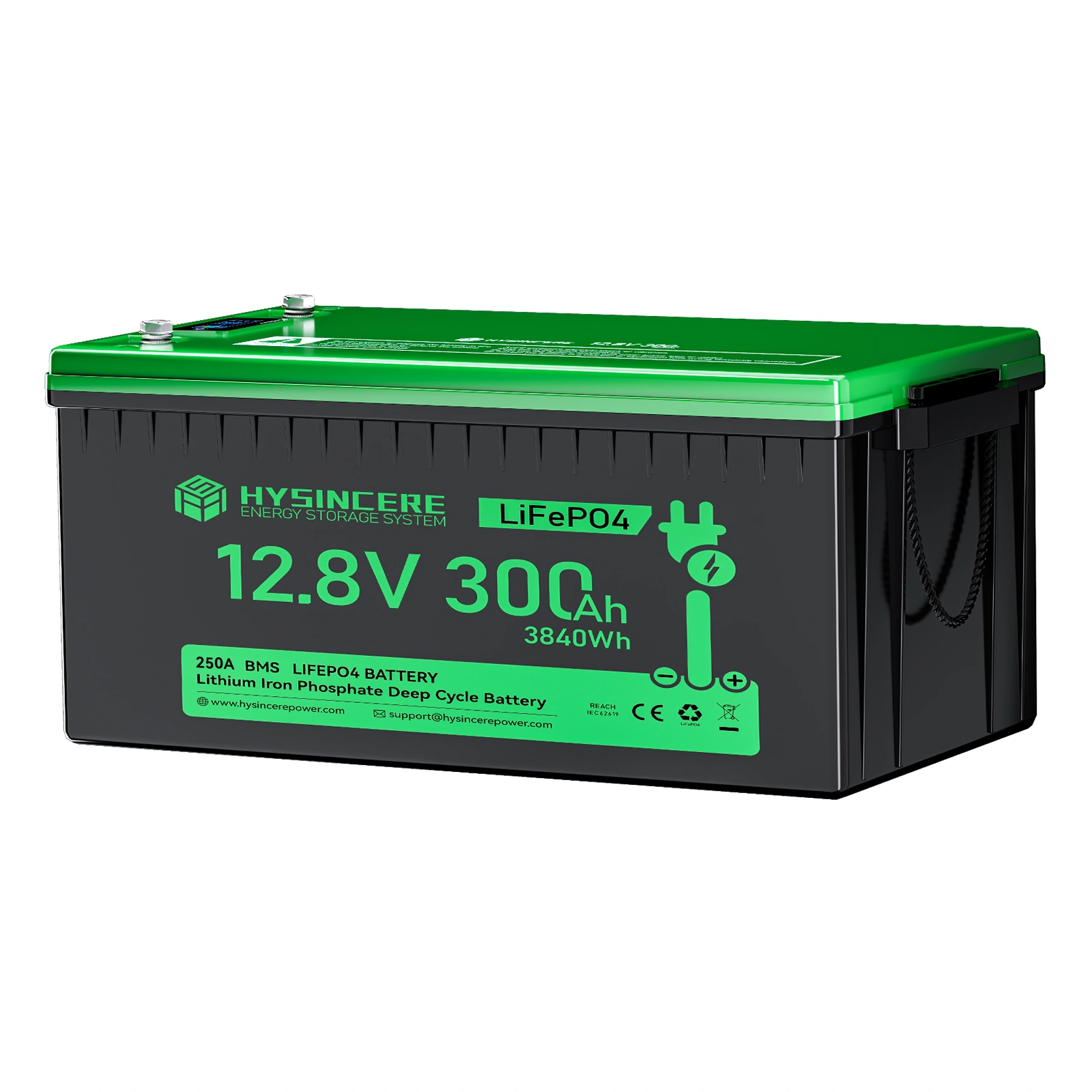

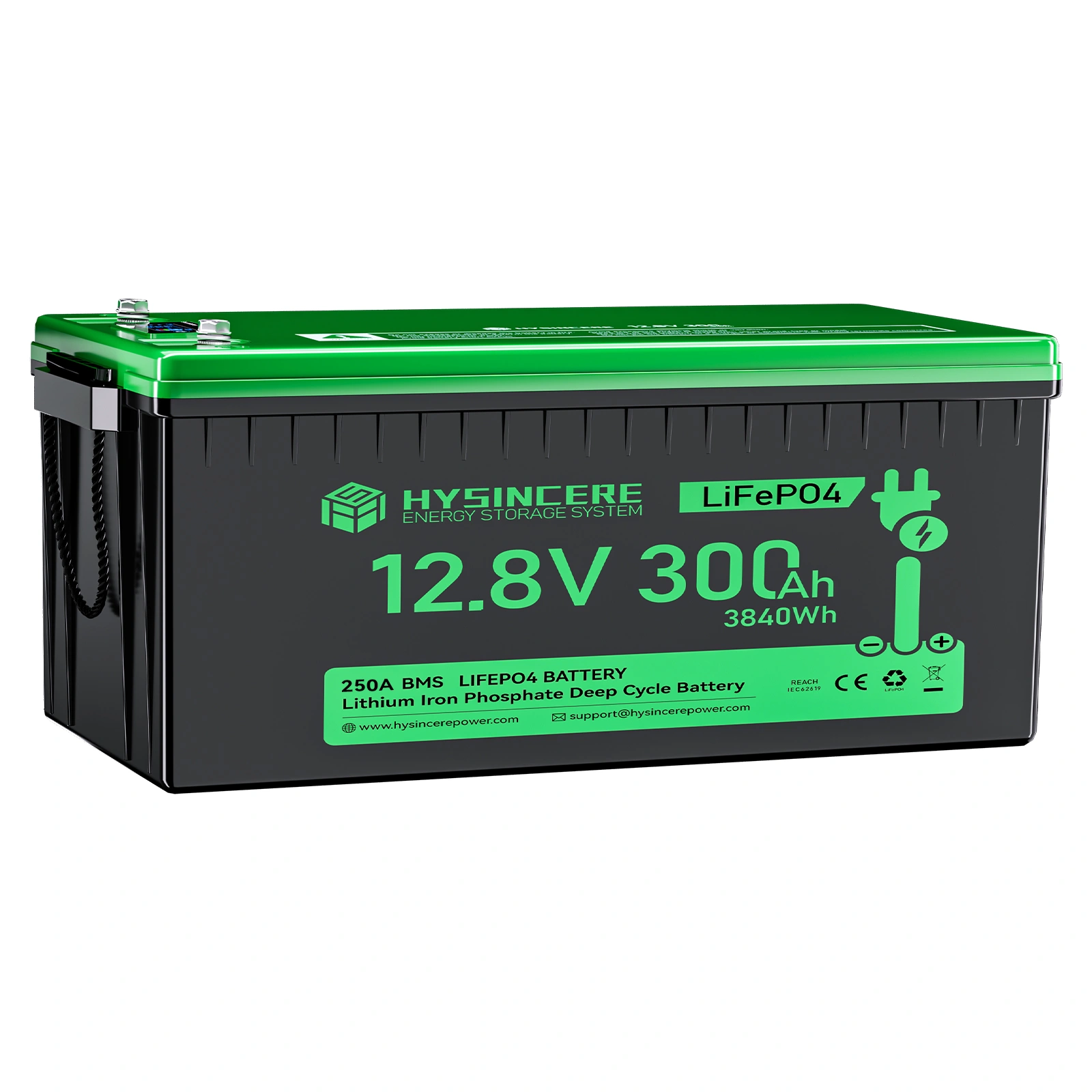

LF12300C-SL 12.8V 300Ah LiFePO4 Battery for Large RV Solar and Home Energy Storage

The LF12300C-SL is a 12.8V 300Ah Smart LCD LiFePO4 Battery from the Hysincere Smart LCD Screen Series, designed for large RV solar systems, home energy storage and smart battery data display applications. It delivers 3840Wh rated energy with 200A continuous discharge performance. It also supports Smart LCD screen for accurate battery data display.

The LF12300C-SL is a 12.8V 300Ah Smart LCD LiFePO4 Battery from the Hysincere Smart LCD Screen Series, designed for large RV solar systems, home energy storage and smart battery data display applications. It delivers 3840Wh rated energy with 200A continuous discharge performance. It also supports Smart LCD screen for accurate battery data display.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF12300C-SL Smart BMS Protection for 200A Continuous Discharge

The LF12300C-SL is designed with smart BMS protection to support safer charge and discharge operation in large RV solar systems, home energy storage and smart battery data display applications. It supports 200A continuous discharge, 400A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

The LF12300C-SL is designed with smart BMS protection to support safer charge and discharge operation in large RV solar systems, home energy storage and smart battery data display applications. It supports 200A continuous discharge, 400A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF12300C-SL ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF12300C-SL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 3840Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in large RV solar systems, home energy storage and smart battery data display applications.

The LF12300C-SL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 3840Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in large RV solar systems, home energy storage and smart battery data display applications.

Technical Specifications

LF12300C-SL Product Parameters

Main Parameters
ModelLF12300C-SLNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity300AhRated Energy3840Wh
Electrical Performance
Maximum Charge Current200AMaximum Continuous Discharge Current200A
Maximum Peak Discharge Current (5S)400AMaximum Series & Parallel4S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP65Protection LevelIP65
Physical & Installation
TerminalsM8Dimension522*240*218mm
Weight27.6kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenSmart LCD screen, accurate battery data
Certification(EU) 2023/1542 MSDS UN38.3
Download Datasheet PDF

FAQ

What is the LF12300C-SL and where is it used?

The LF12300C-SL is intended for mobile and stationary energy systems that require local battery-status display. Its listed core specifications are 12.8V nominal voltage, 300Ah nominal capacity, 3840Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF12300C-SL be charged?

Use a charger whose chemistry, voltage and current settings match the LF12300C-SL. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 200A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF12300C-SL provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 200A, 5-second peak current 400A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF12300C-SL?

For the LF12300C-SL, the listed physical and environmental specifications are dimensions 522*240*218mm, weight 27.6kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF12300C-SL be customized for an OEM project?

Hysincere can review the LF12300C-SL for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed series/parallel support: 4S4P; protection level: IP65. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
