Product Features

Stable Power Output

Delivers 89.6Wh rated energy for lead-acid replacement, RV, marine, trolling motor and backup power applications.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 10A continuous discharge and 20A peak discharge for demanding loads.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term lithium replacement power.

Wide Temperature Operation

Supports charging from 0~+55°C and discharging from -20~+60°C for dependable outdoor and backup power use.

Hysincere Regular Version Series LiFePO4 battery application scenario for home solar energy storage

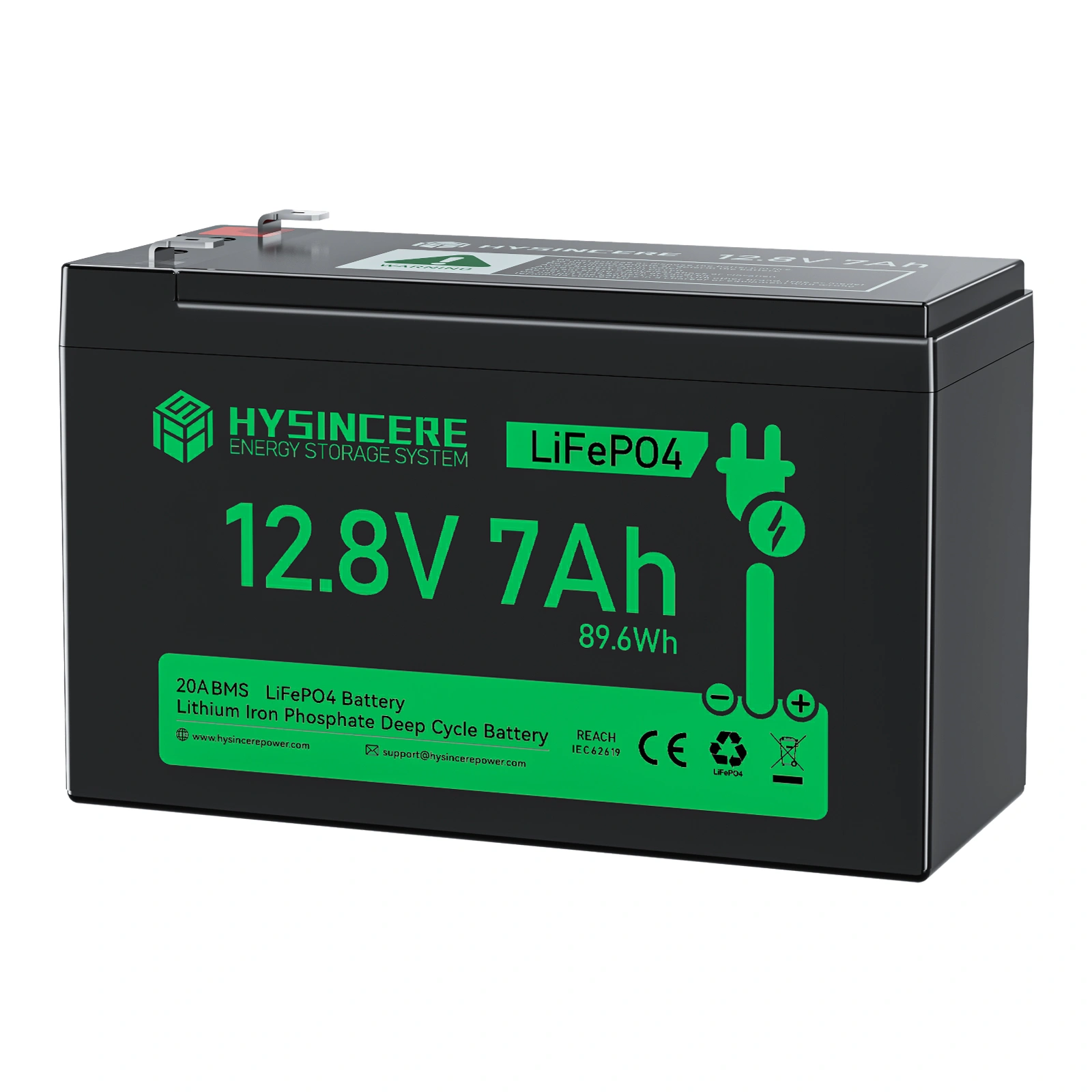

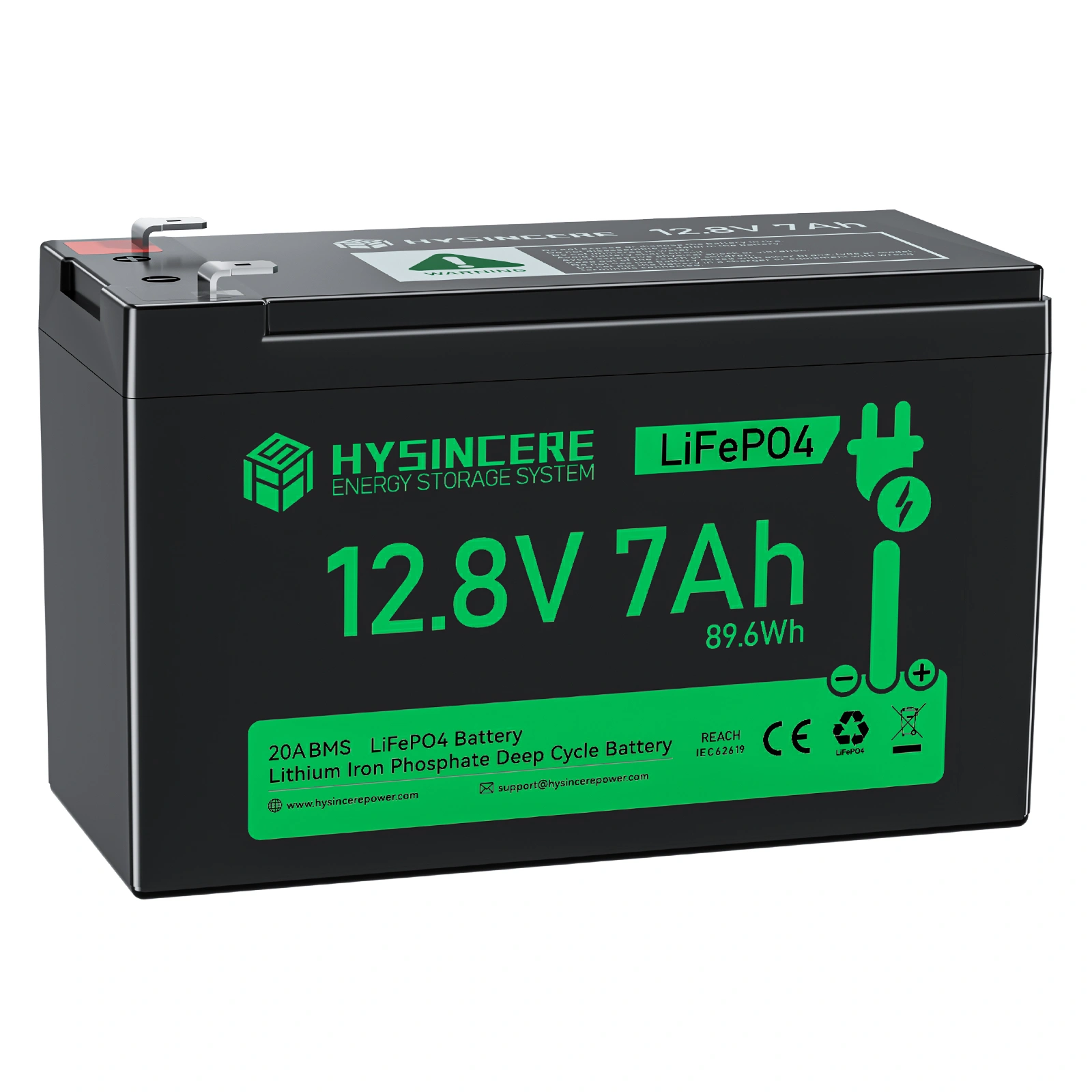

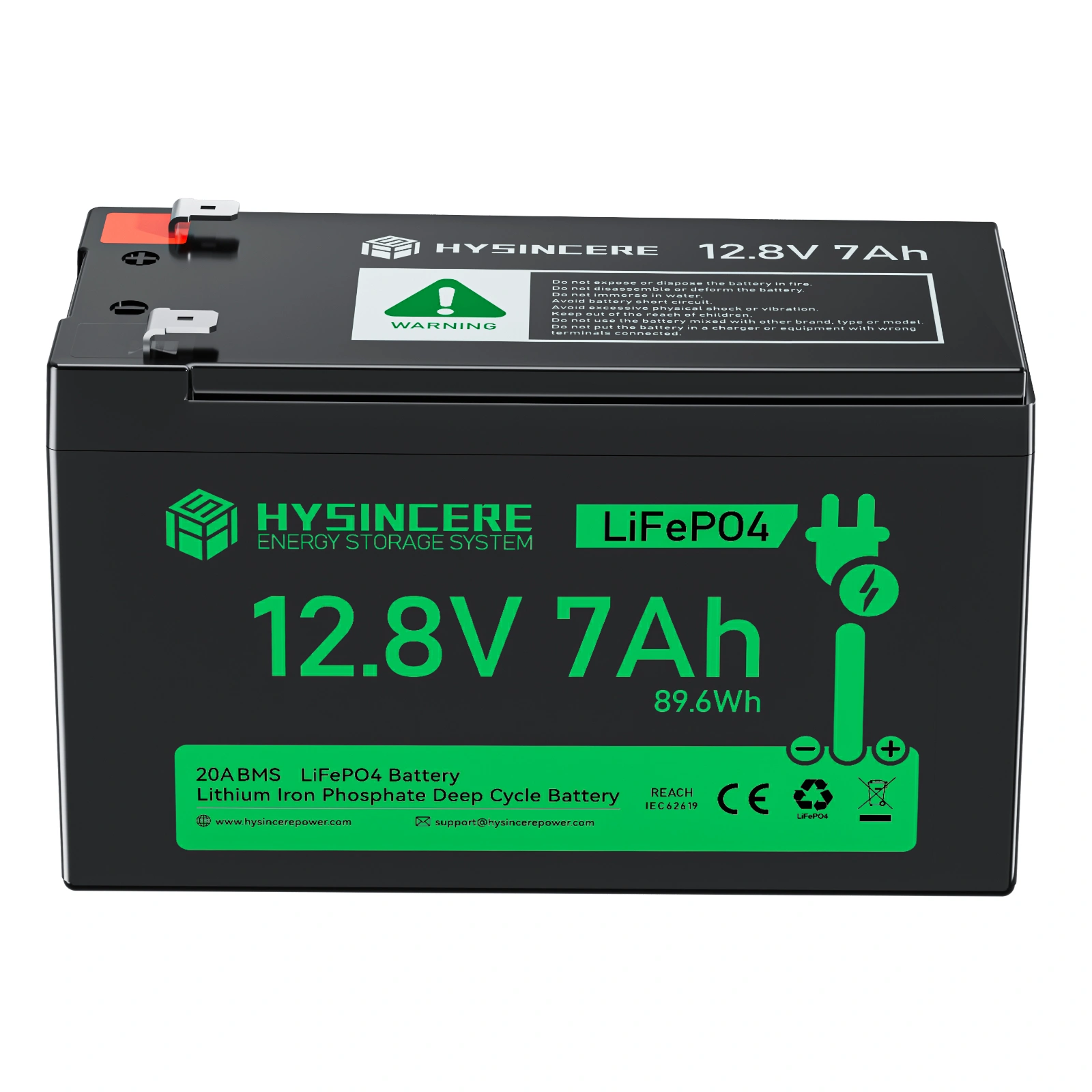

LF127N-H 12.8V 7Ah LiFePO4 Battery for Small Backup and Portable Power

The LF127N-H is a 12.8V 7Ah LiFePO4 Battery from the Hysincere Regular Version Series, designed for compact lead-acid replacement, small backup power and portable energy applications. It delivers 89.6Wh rated energy with 10A continuous discharge performance.

The LF127N-H is a 12.8V 7Ah LiFePO4 Battery from the Hysincere Regular Version Series, designed for compact lead-acid replacement, small backup power and portable energy applications. It delivers 89.6Wh rated energy with 10A continuous discharge performance.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF127N-H Smart BMS Protection for 10A Continuous Discharge

The LF127N-H is designed with smart BMS protection to support safer charge and discharge operation in compact lead-acid replacement, small backup power and portable energy applications. It supports 10A continuous discharge, 20A peak discharge, IP67 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 1S4P configuration for flexible system design.

The LF127N-H is designed with smart BMS protection to support safer charge and discharge operation in compact lead-acid replacement, small backup power and portable energy applications. It supports 10A continuous discharge, 20A peak discharge, IP67 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 1S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF127N-H ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF127N-H is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 89.6Wh rated energy, 10A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in compact lead-acid replacement, small backup power and portable energy applications.

The LF127N-H is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 89.6Wh rated energy, 10A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in compact lead-acid replacement, small backup power and portable energy applications.

Technical Specifications

LF127N-H Product Parameters

Main Parameters
ModelLF127N-HNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity7AhRated Energy89.6Wh
Electrical Performance
Maximum Charge Current7AMaximum Continuous Discharge Current10A
Maximum Peak Discharge Current (5S)20AMaximum Series & Parallel1S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP67Protection LevelIP67
Physical & Installation
TerminalsF2Dimension152*65*94mm
Weight0.9kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenNO
Certification(EU) 2023/1542
Download Datasheet PDF

FAQ

What is the LF127N-H and where is it used?

The LF127N-H is intended for lead-acid replacement, RV, marine, solar and backup-power applications. Its listed core specifications are 12.8V nominal voltage, 7Ah nominal capacity, 89.6Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF127N-H be charged?

Use a charger whose chemistry, voltage and current settings match the LF127N-H. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 7A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF127N-H provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 10A, 5-second peak current 20A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF127N-H?

For the LF127N-H, the listed physical and environmental specifications are dimensions 152*65*94mm, weight 0.9kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF127N-H be customized for an OEM project?

Hysincere can review the LF127N-H for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed series/parallel support: 1S4P; protection level: IP67. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
