Product Features

Stable Power Output

The EF51314W-L combines 51.2V, 314Ah, 16.08kWh for dependable operation in residential solar storage and backup power.

Application-Ready Integration

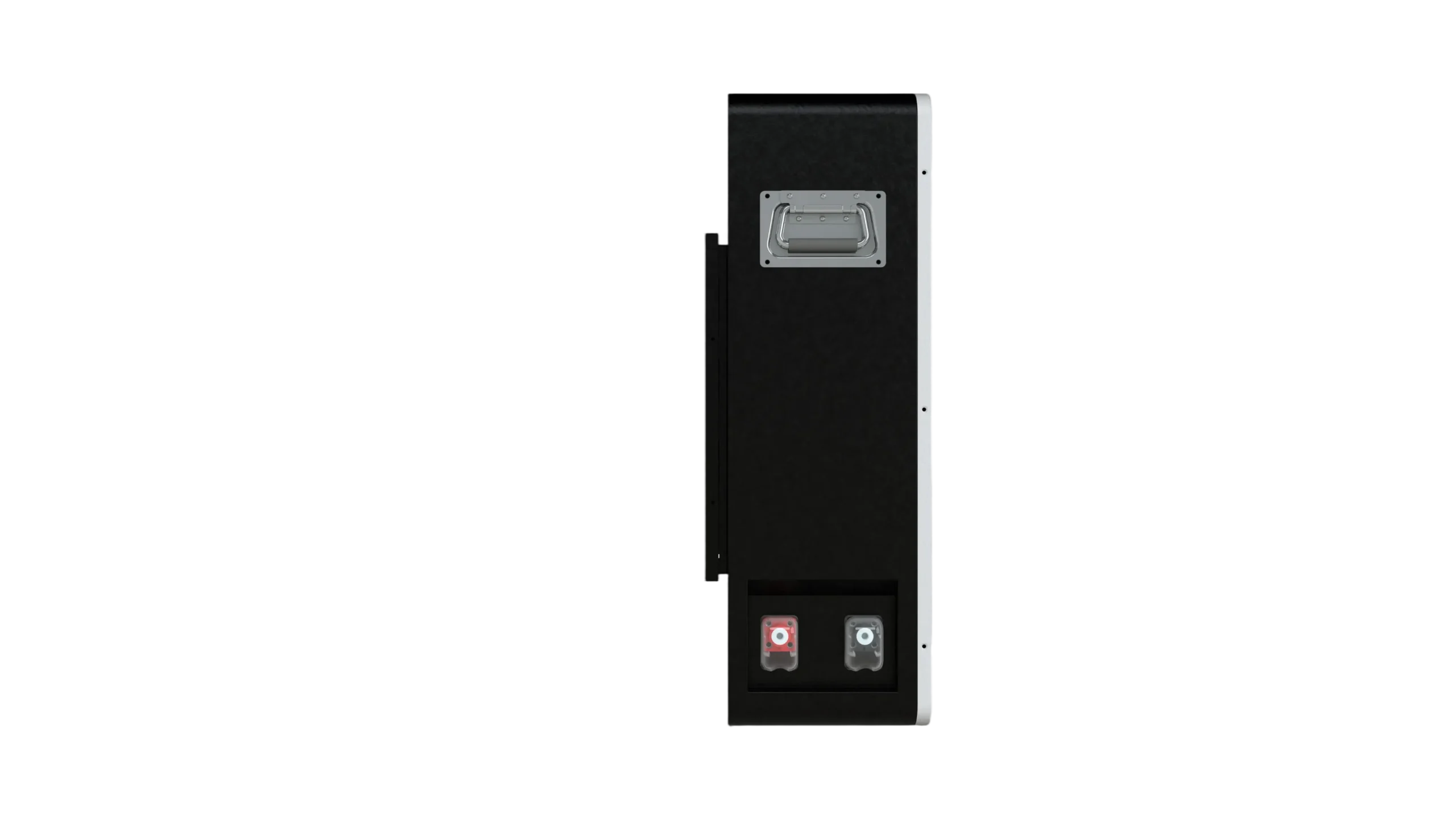

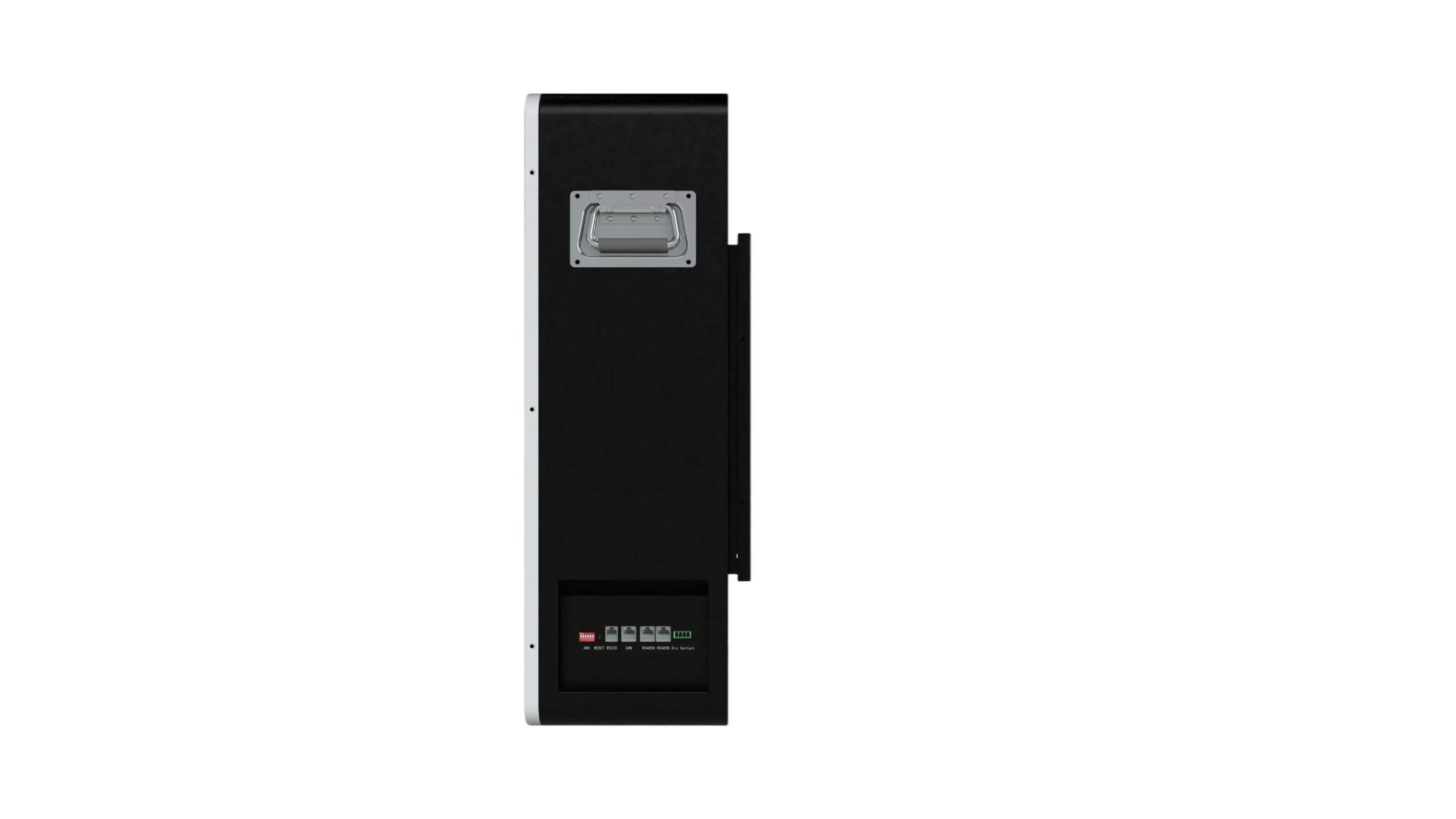

For the EF51314W-L wall-mounted LiFePO4 battery, integration details include communication: CAN/RS485; terminals: M8; protection: IP54, helping project teams plan the electrical and mechanical interface.

Defined Service Conditions

The EF51314W-L wall-mounted LiFePO4 battery service limits are cycle life: ≥8000; charge temperature: 0~+55°C; discharge temperature: -20~+65°C; dimensions: 460×260×824mm; weight: 135kg, supporting safe system design and maintenance planning.

OEM/ODM Engineering Support

Hysincere can review BMS, connector, wiring, enclosure, communication, labeling, and packaging requirements for the EF51314W-L wall-mounted LiFePO4 battery.

Technical Specifications

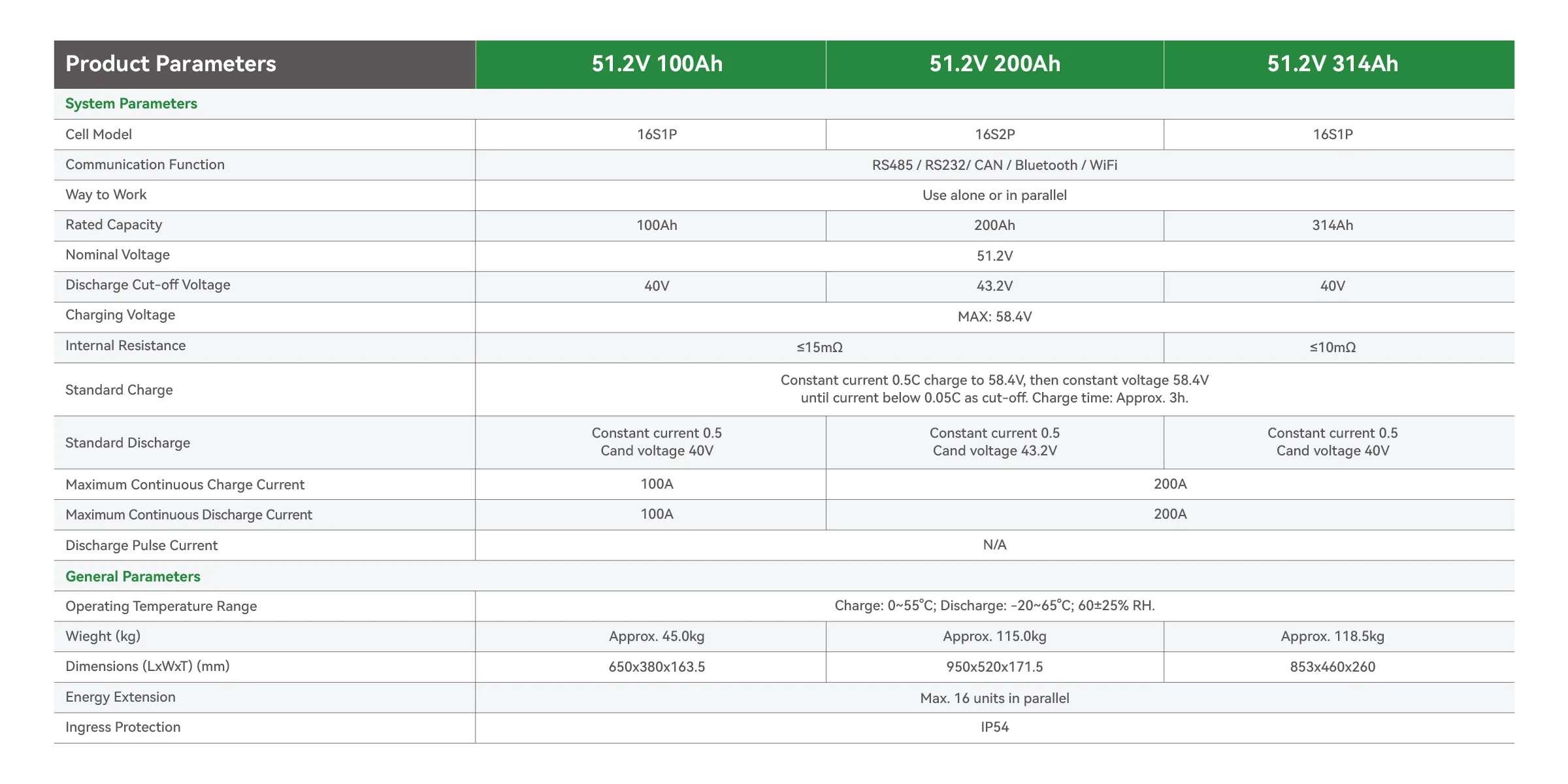

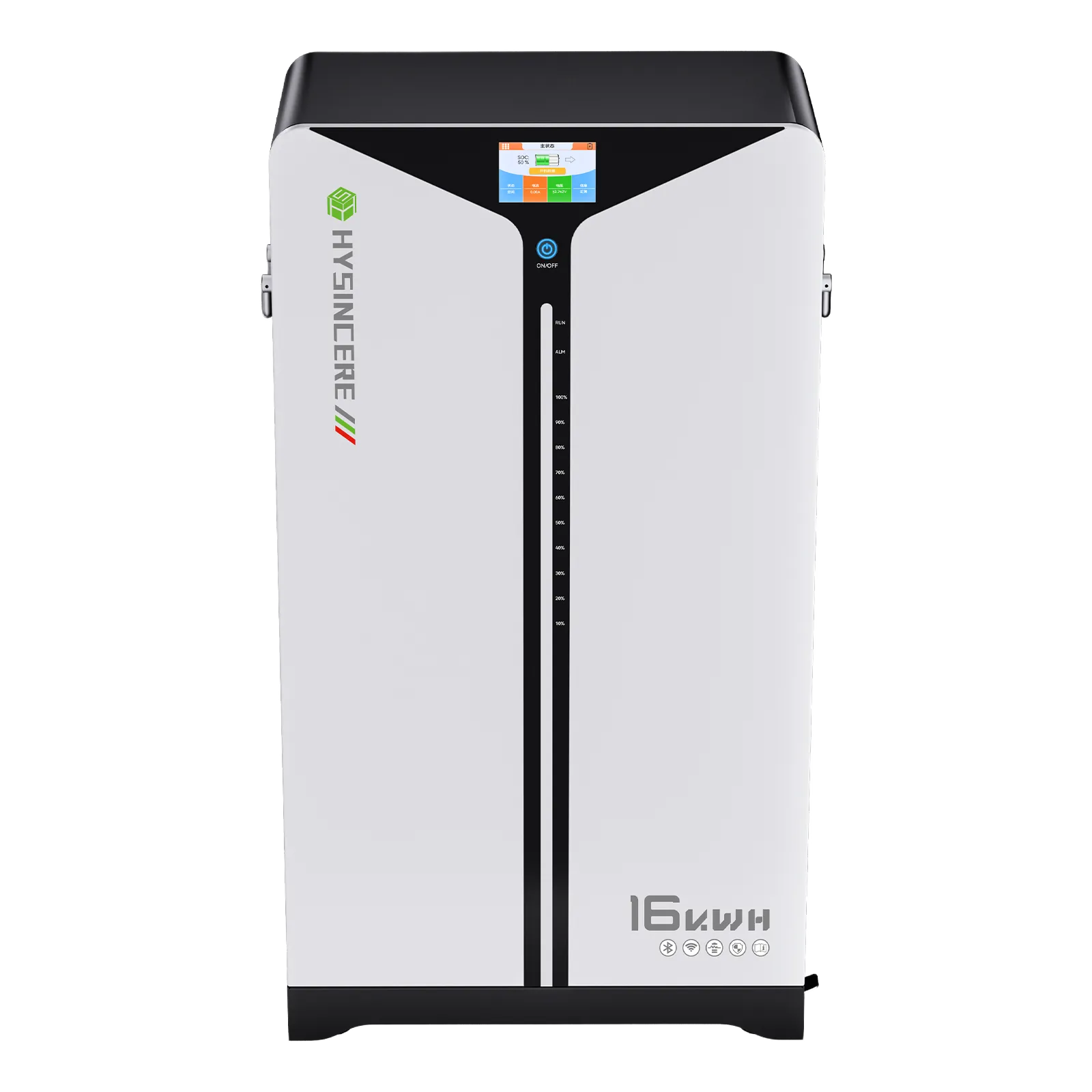

EF51314W-L 51.2V 314Ah floor-mounted LiFePO4 battery Product Parameters

Main Parameters
ModelEF51314W-LNominal Voltage51.2V
Discharge Cut-off Voltage43.2VNominal Capacity314Ah
Rated Energy16.08kWh
Electrical Performance
Maximum Charge Current200AMaximum Continuous Discharge Current200A
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+65°C
Communication PortCAN/RS485IP Rating of EnclosureIP54
Protection LevelIP54Storage Temperature(℃)-20~+45°C
Physical & Installation
TerminalsM8Dimension460*260*824mm

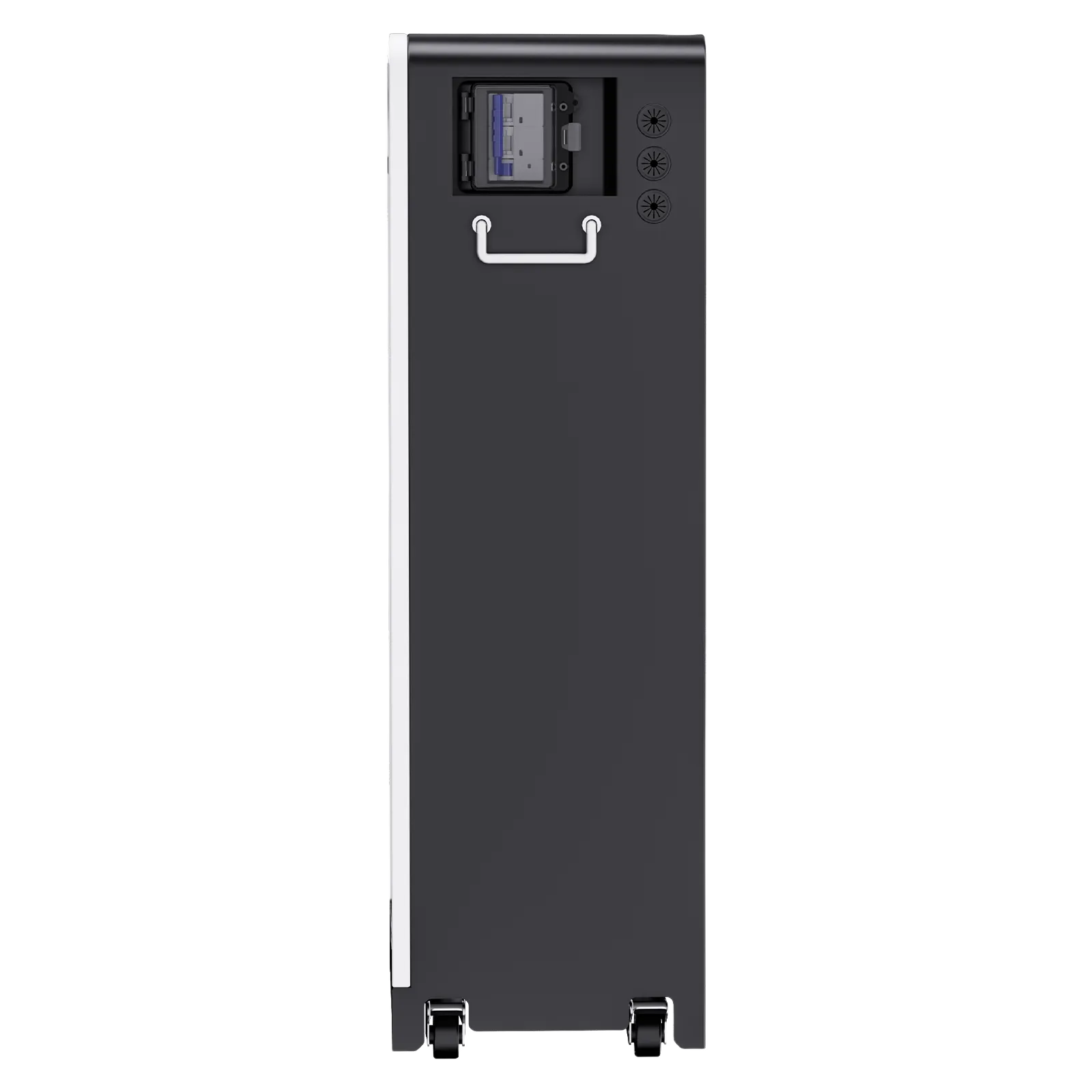

Weight135kgInstallation LocationFloor-mounted with wheels
Lifecycle & Compliance
Cycle Life≥8000

EF51314W-L Frequently Asked Questions

Technical answers about the EF51314W-L wall-mounted LiFePO4 battery, including electrical ratings, charging, installation, operating conditions, and OEM/ODM integration.

What is the EF51314W-L designed for?

The EF51314W-L is a wall-mounted LiFePO4 battery intended for residential solar storage and backup power. System selection should confirm the equipment voltage, continuous and peak load, installation space, and required certifications.

What are the key electrical specifications of the EF51314W-L?

The confirmed core ratings are 51.2V, 314Ah, 16.08kWh. Electrical limits include discharge cut-off voltage 43.2V; maximum charge current 200A; continuous discharge current 200A. Use the final approved specification for charger and protection settings.

How should the EF51314W-L be charged and protected?

Use a charger and protection strategy matched to the battery chemistry, voltage, and current limits. For this model, the relevant limits are discharge cut-off voltage 43.2V; maximum charge current 200A; continuous discharge current 200A. Verify connector polarity, cable sizing, fuse selection, and BMS communication before commissioning.

What installation and environmental details apply to the EF51314W-L?

The confirmed physical and service information is cycle life: ≥8000; charge temperature: 0~+55°C; discharge temperature: -20~+65°C; dimensions: 460×260×824mm; weight: 135kg. Allow adequate ventilation, mechanical support, service clearance, and protection appropriate to the operating environment.

Can the EF51314W-L be customized for OEM or ODM projects?

Yes. Hysincere can evaluate connector, wiring, enclosure, BMS, communication, label, and packaging requirements. Current integration information is communication: CAN/RS485; terminals: M8; protection: IP54. Final feasibility and specifications are confirmed through engineering review.
