Product Features

Stable Power Output

Delivers 51.2V 105Ah output with 5376Wh rated energy for golf cart and low-speed electric vehicle applications. Driving mileage: 65–80km.

Grade A Cells

Built with Grade A cells for dependable golf cart power, consistent output and long-term battery performance.

RS485/CAN Communication

Supports RS485/CAN communication for smarter golf cart battery integration and system monitoring.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term golf cart battery replacement.

Hysincere golf cart battery series application scenario for electric golf cart power systems

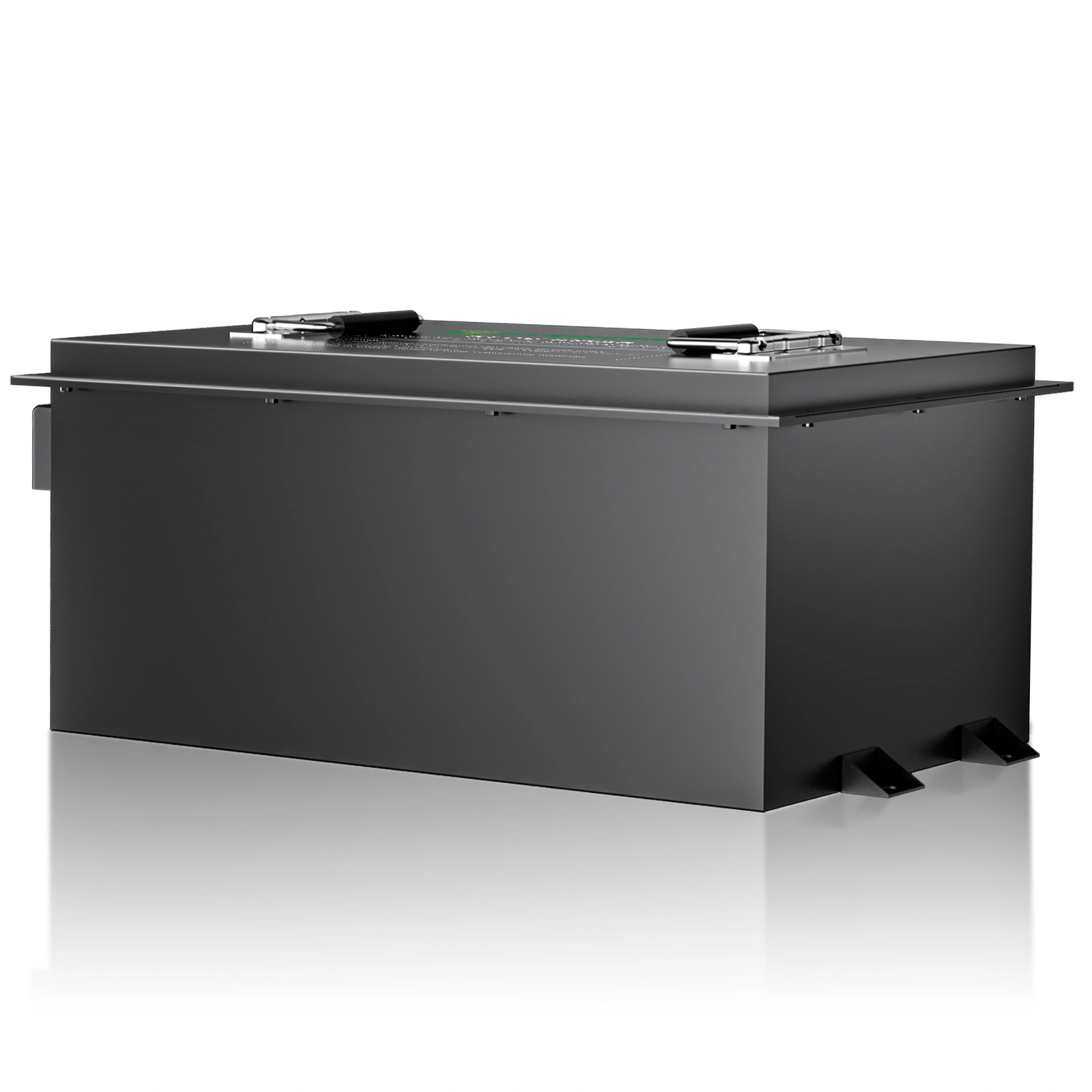

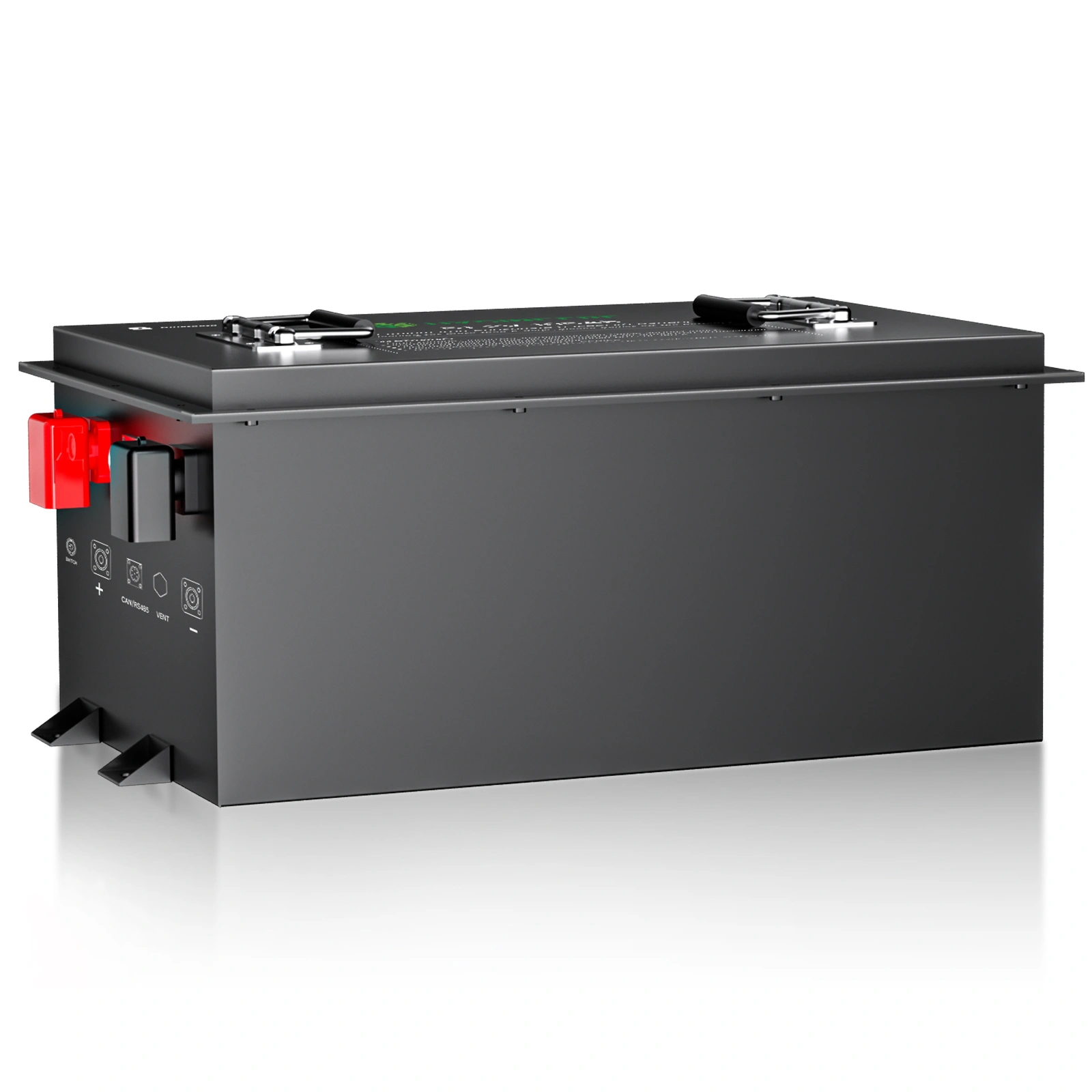

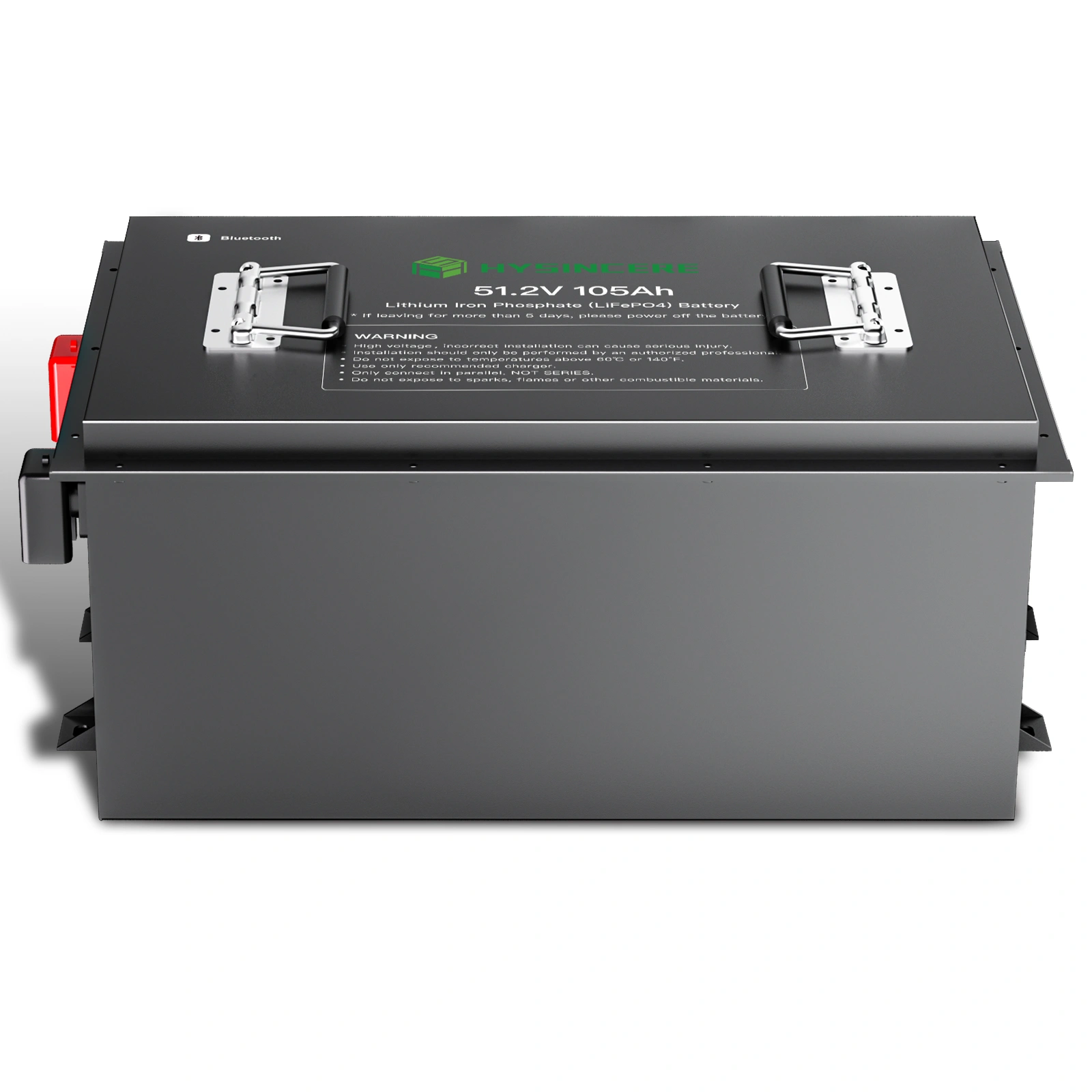

GF51105N-BW 51.2V 105Ah LiFePO4 Battery for Electric Golf Cart Power Systems

The GF51105N-BW is a 51.2V 105Ah Golf Cart LiFePO4 Battery from the Hysincere Golf Cart Battery Series, designed for electric golf carts and low-speed vehicle power systems. It delivers 5376Wh rated energy with 200A continuous discharge and 300A peak discharge performance. The driving mileage range is 65~80km. Communication support includes RS485/CAN.

The GF51105N-BW is a 51.2V 105Ah Golf Cart LiFePO4 Battery from the Hysincere Golf Cart Battery Series, designed for electric golf carts and low-speed vehicle power systems. It delivers 5376Wh rated energy with 200A continuous discharge and 300A peak discharge performance. The driving mileage range is 65~80km. Communication support includes RS485/CAN.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

GF51105N-BW Smart BMS Protection for 200A Continuous Discharge

The GF51105N-BW is built with smart BMS protection for electric golf cart battery systems, helping support stable operation during charging, discharging and high-load driving. It supports 200A continuous discharge, 300A peak discharge, IP67 protection, charging from 0~55°C and discharging from -20~+60°C. Communication support includes RS485/CAN.

The GF51105N-BW is built with smart BMS protection for electric golf cart battery systems, helping support stable operation during charging, discharging and high-load driving. It supports 200A continuous discharge, 300A peak discharge, IP67 protection, charging from 0~55°C and discharging from -20~+60°C. Communication support includes RS485/CAN.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

GF51105N-BW ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The GF51105N-BW is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 5376Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in electric golf carts and low-speed vehicle power systems.

The GF51105N-BW is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 5376Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in electric golf carts and low-speed vehicle power systems.

Technical Specifications

GF51105N-BW Product Parameters

Main Parameters
ModelGF51105N-BWNominal Voltage51.2V
Maximum Charge Voltage58.4VDischarge Cut-off Voltage40V
Nominal Capacity105AhRated Energy5376Wh
Electrical Performance
Maximum Charge Current105AMaximum Continuous Discharge Current200A
Maximum Peak Discharge Current (5S)300A
Temperature & Protection
Charge Temperature0~55°CDischarge Temperature-20~+60°C
Communication PortRS485/CANIP Rating of EnclosureIP67
Protection LevelIP67
Physical & Installation
TerminalsM8Dimension547*334*244.8mm
Weight47.2kgDriving Mileage65~80km
Lifecycle & Compliance
Cycle Life≥4000
Download Datasheet PDF

FAQ

What is the GF51105N-BW and where is it used?

The GF51105N-BW is intended for golf carts and compatible low-speed electric vehicles. Its listed core specifications are 51.2V nominal voltage, 105Ah nominal capacity, 5376Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the GF51105N-BW be charged?

Use a charger whose chemistry, voltage and current settings match the GF51105N-BW. The listed charging limits are maximum charge voltage 58.4V, maximum charge current 105A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the GF51105N-BW provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 40V, maximum continuous discharge current 200A, 5-second peak current 300A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the GF51105N-BW?

For the GF51105N-BW, the listed physical and environmental specifications are dimensions 547*334*244.8mm, weight 47.2kg, charge temperature 0~55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the GF51105N-BW be customized for an OEM project?

Hysincere can review the GF51105N-BW for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed communication: RS485/CAN; protection level: IP67. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
