Product Features

Stable Power Output

Delivers 1280Wh rated energy for RV solar storage, home backup power and smart battery monitoring applications.

Smart LCD Data Display

Built with a Smart LCD screen for accurate battery data display and easier on-site battery monitoring.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 100A continuous discharge and 200A peak discharge for demanding loads.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term LiFePO4 replacement power.

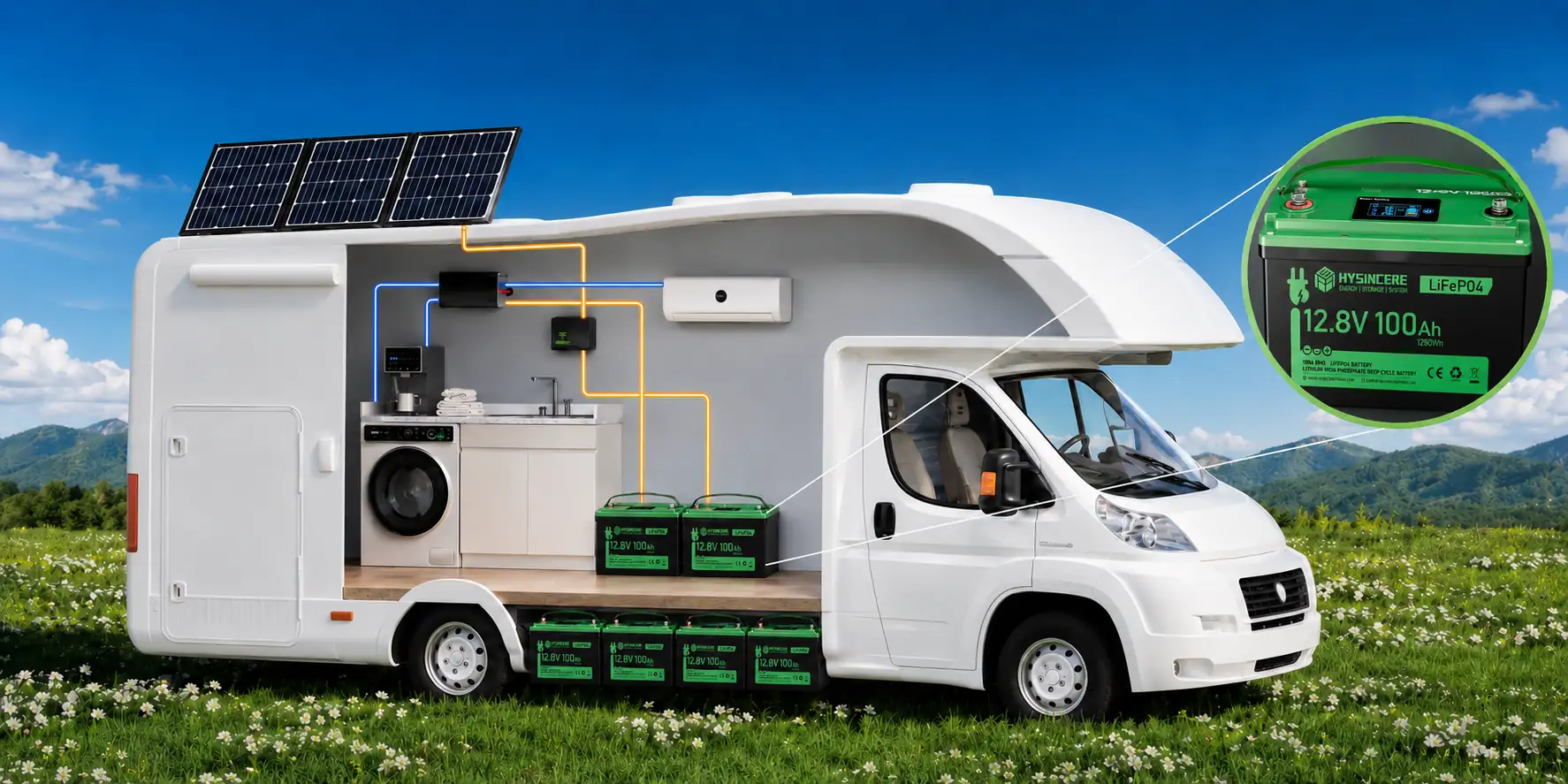

hysincere-smart-lcd-screen-series-rv-solar-application-scenario-detail

LF12100N-SL 12.8V 100Ah LiFePO4 Battery for RV Solar and Smart Battery Monitoring

The LF12100N-SL is a 12.8V 100Ah Smart LCD LiFePO4 Battery from the Hysincere Smart LCD Screen Series, designed for RV solar systems, home backup power and smart battery monitoring applications. It delivers 1280Wh rated energy with 100A continuous discharge performance. It also supports Smart LCD screen for accurate battery data display.

The LF12100N-SL is a 12.8V 100Ah Smart LCD LiFePO4 Battery from the Hysincere Smart LCD Screen Series, designed for RV solar systems, home backup power and smart battery monitoring applications. It delivers 1280Wh rated energy with 100A continuous discharge performance. It also supports Smart LCD screen for accurate battery data display.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF12100N-SL Smart BMS Protection for 100A Continuous Discharge

The LF12100N-SL is designed with smart BMS protection to support safer charge and discharge operation in RV solar systems, home backup power and smart battery monitoring applications. It supports 100A continuous discharge, 200A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

The LF12100N-SL is designed with smart BMS protection to support safer charge and discharge operation in RV solar systems, home backup power and smart battery monitoring applications. It supports 100A continuous discharge, 200A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF12100N-SL ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF12100N-SL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1280Wh rated energy, 100A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in RV solar systems, home backup power and smart battery monitoring applications.

The LF12100N-SL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1280Wh rated energy, 100A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in RV solar systems, home backup power and smart battery monitoring applications.

Technical Specifications

LF12100N-SL Product Parameters

Main Parameters
ModelLF12100N-SLNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity100AhRated Energy1280Wh
Electrical Performance
Maximum Charge Current100AMaximum Continuous Discharge Current100A
Maximum Peak Discharge Current (5S)200AMaximum Series & Parallel4S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP65Protection LevelIP65
Physical & Installation
TerminalsM8Dimension229*144*213mm
Weight8.95kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenSmart LCD screen, accurate battery data
Certification(EU) 2023/1542 CE MSDS UN38.3
Download Datasheet PDF

FAQ

What is the LF12100N-SL and where is it used?

The LF12100N-SL is intended for mobile and stationary energy systems that require local battery-status display. Its listed core specifications are 12.8V nominal voltage, 100Ah nominal capacity, 1280Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF12100N-SL be charged?

Use a charger whose chemistry, voltage and current settings match the LF12100N-SL. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 100A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF12100N-SL provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 100A, 5-second peak current 200A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF12100N-SL?

For the LF12100N-SL, the listed physical and environmental specifications are dimensions 229*144*213mm, weight 8.95kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF12100N-SL be customized for an OEM project?

Hysincere can review the LF12100N-SL for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed series/parallel support: 4S4P; protection level: IP65. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
