Product Features

Stable Power Output

Delivers 1996.8Wh rated energy for RV, marine, outdoor power and smart app monitoring applications.

Smart APP Battery Monitoring

Cellphone connected battery design supports convenient smart app monitoring for battery status and system operation.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 50A continuous discharge and 100A peak discharge for demanding loads.

Maximum 1S4P Connection

Supports flexible system configuration for RV, marine, solar backup and lead-acid replacement power systems.

Hysincere Bluetooth Connection Series LiFePO4 battery application scenario with smart app monitoring

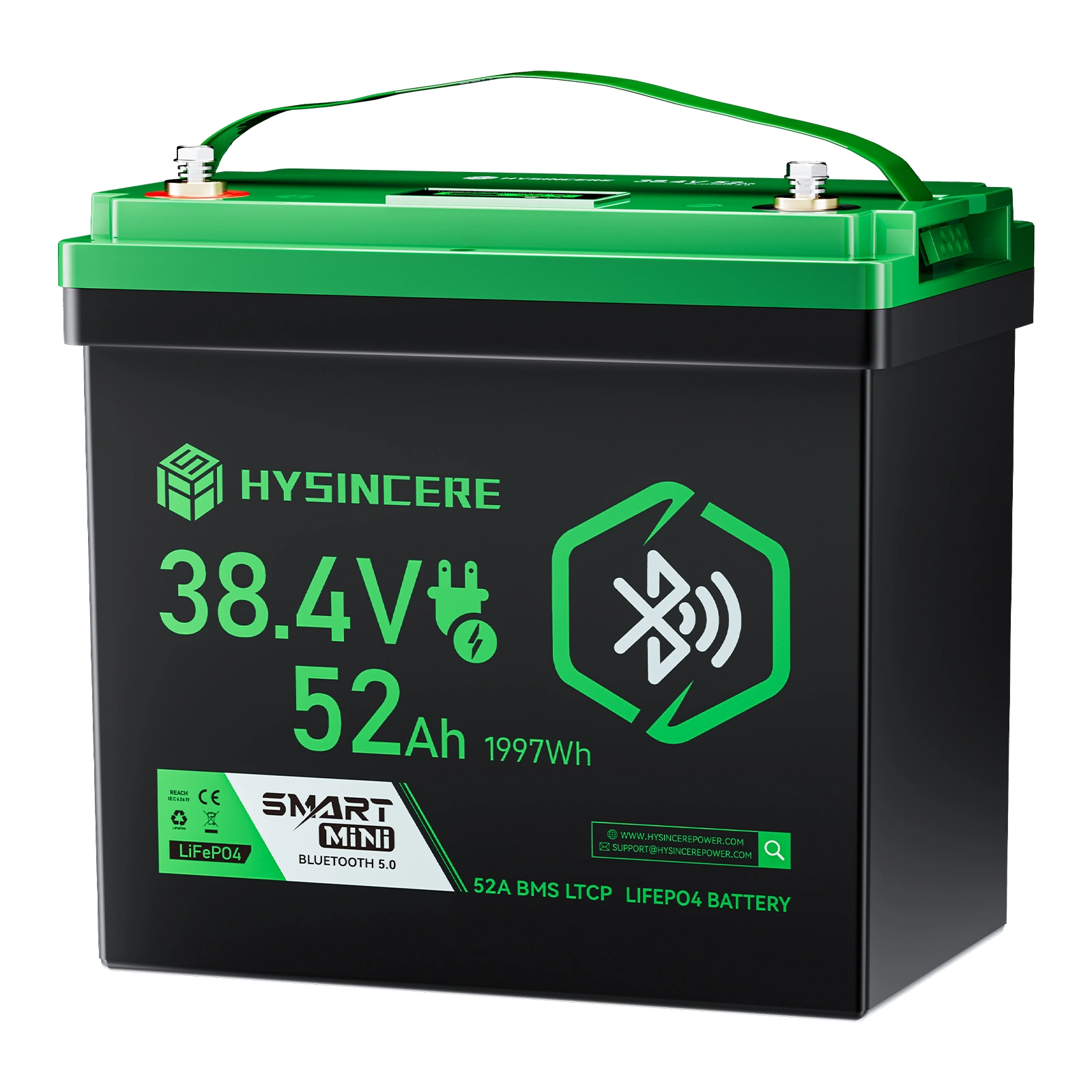

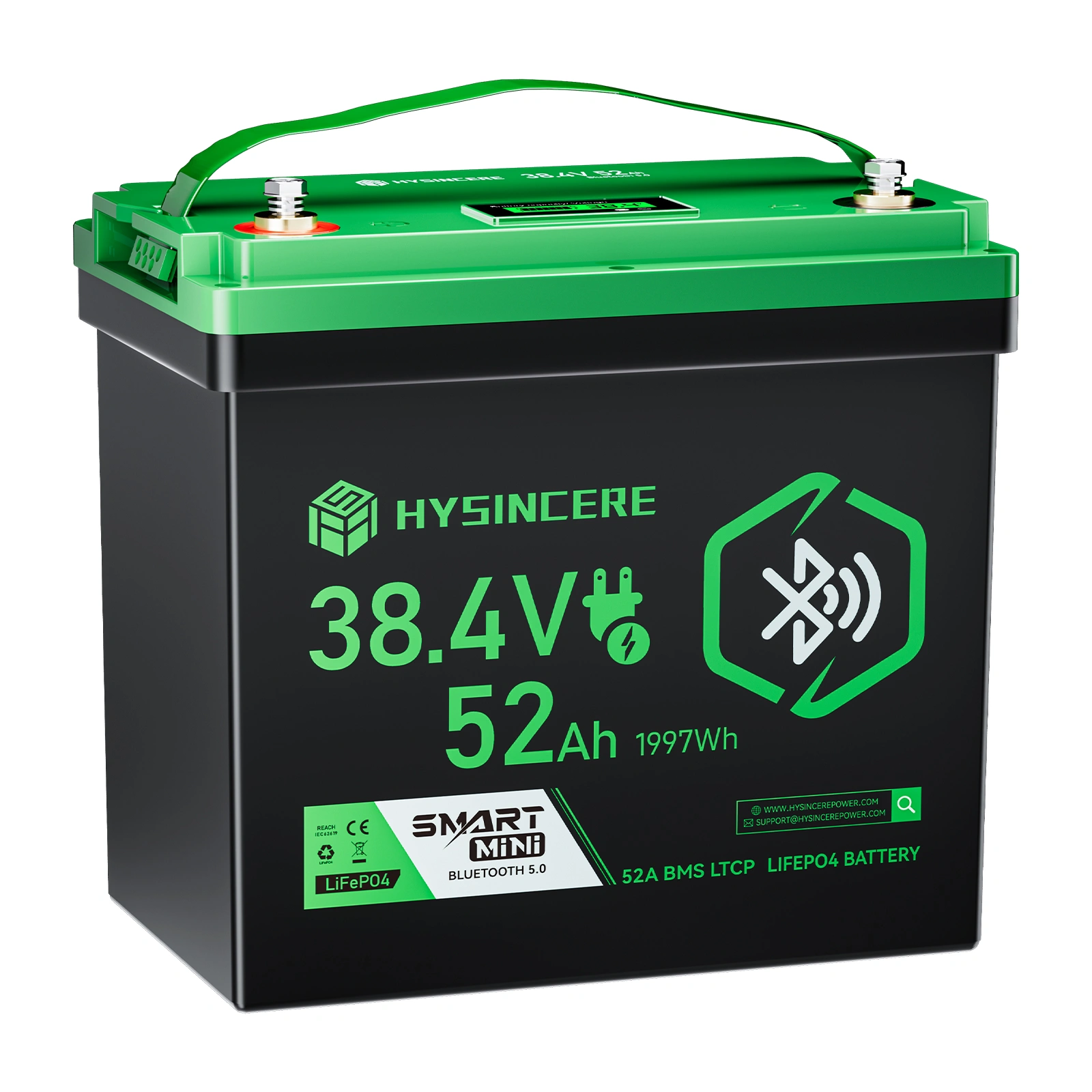

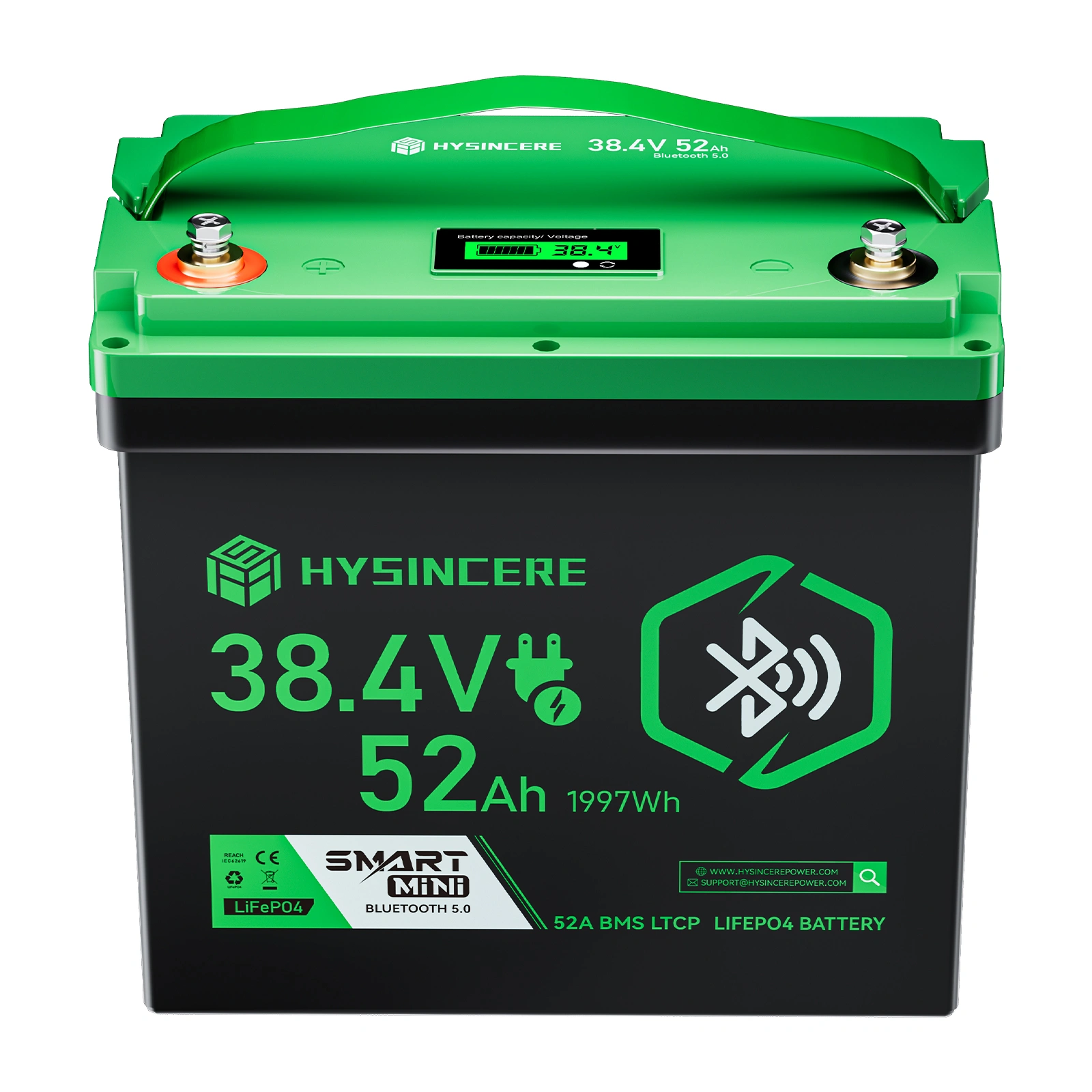

LF3852N-B 38.4V 52Ah LiFePO4 Battery for 36V Outdoor Power with Bluetooth App

The LF3852N-B is a 38.4V 52Ah Bluetooth LiFePO4 Battery from the Hysincere Bluetooth Connection Series, designed for 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring. It delivers 1996.8Wh rated energy with 50A continuous discharge performance. It also supports Bluetooth smart app monitoring.

The LF3852N-B is a 38.4V 52Ah Bluetooth LiFePO4 Battery from the Hysincere Bluetooth Connection Series, designed for 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring. It delivers 1996.8Wh rated energy with 50A continuous discharge performance. It also supports Bluetooth smart app monitoring.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF3852N-B Smart BMS Protection for 50A Continuous Discharge

The LF3852N-B is designed with smart BMS protection to support safer charge and discharge operation in 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring. It supports 50A continuous discharge, 100A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 1S4P configuration for flexible system design.

The LF3852N-B is designed with smart BMS protection to support safer charge and discharge operation in 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring. It supports 50A continuous discharge, 100A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 1S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF3852N-B ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF3852N-B is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1996.8Wh rated energy, 50A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring.

The LF3852N-B is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1996.8Wh rated energy, 50A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in 36V outdoor energy, marine and electric mobility power systems with Bluetooth monitoring.

Technical Specifications

LF3852N-B Product Parameters

Main Parameters
ModelLF3852N-BNominal Voltage38.4V
Maximum Charge Voltage43.8VDischarge Cut-off Voltage30V
Nominal Capacity52AhRated Energy1996.8Wh
Electrical Performance
Maximum Charge Current50AMaximum Continuous Discharge Current50A
Maximum Peak Discharge Current (5S)100AMaximum Series & Parallel1S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP65Protection LevelIP65
Physical & Installation
TerminalsM8Dimension332*172*220mm
Weight16.1kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenNO
CertificationN/A
Download Datasheet PDF

FAQ

What is the LF3852N-B and where is it used?

The LF3852N-B is intended for RV, marine, solar, off-grid and backup-power systems that benefit from app-based battery monitoring. Its listed core specifications are 38.4V nominal voltage, 52Ah nominal capacity, 1996.8Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF3852N-B be charged?

Use a charger whose chemistry, voltage and current settings match the LF3852N-B. The listed charging limits are maximum charge voltage 43.8V, maximum charge current 50A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF3852N-B provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 30V, maximum continuous discharge current 50A, 5-second peak current 100A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF3852N-B?

For the LF3852N-B, the listed physical and environmental specifications are dimensions 332*172*220mm, weight 16.1kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF3852N-B be customized for an OEM project?

Hysincere can review the LF3852N-B for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: Bluetooth monitoring is a series feature; confirm the BMS and app configuration for the final order; listed series/parallel support: 1S4P; protection level: IP65. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
