Product Features

Stable Power Output

Delivers 4019.2Wh rated energy for RV, marine, outdoor power and smart app monitoring applications.

Smart APP Battery Monitoring

Cellphone connected battery design supports convenient smart app monitoring for battery status and system operation.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 200A continuous discharge and 400A peak discharge for demanding loads.

Maximum 4S4P Connection

Supports flexible system configuration for RV, marine, solar backup and lead-acid replacement power systems.

Hysincere Bluetooth Connection Series LiFePO4 battery application scenario with smart app monitoring

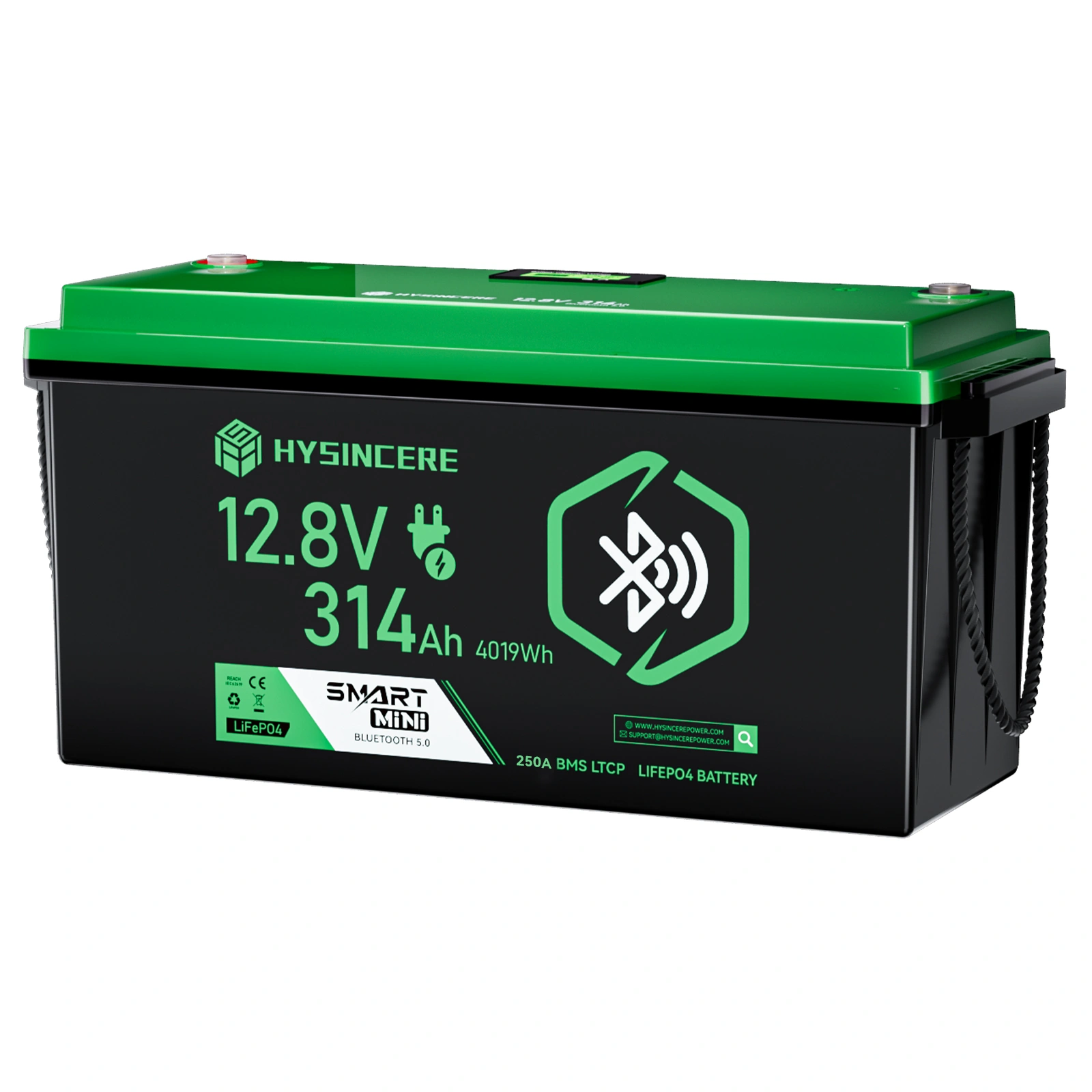

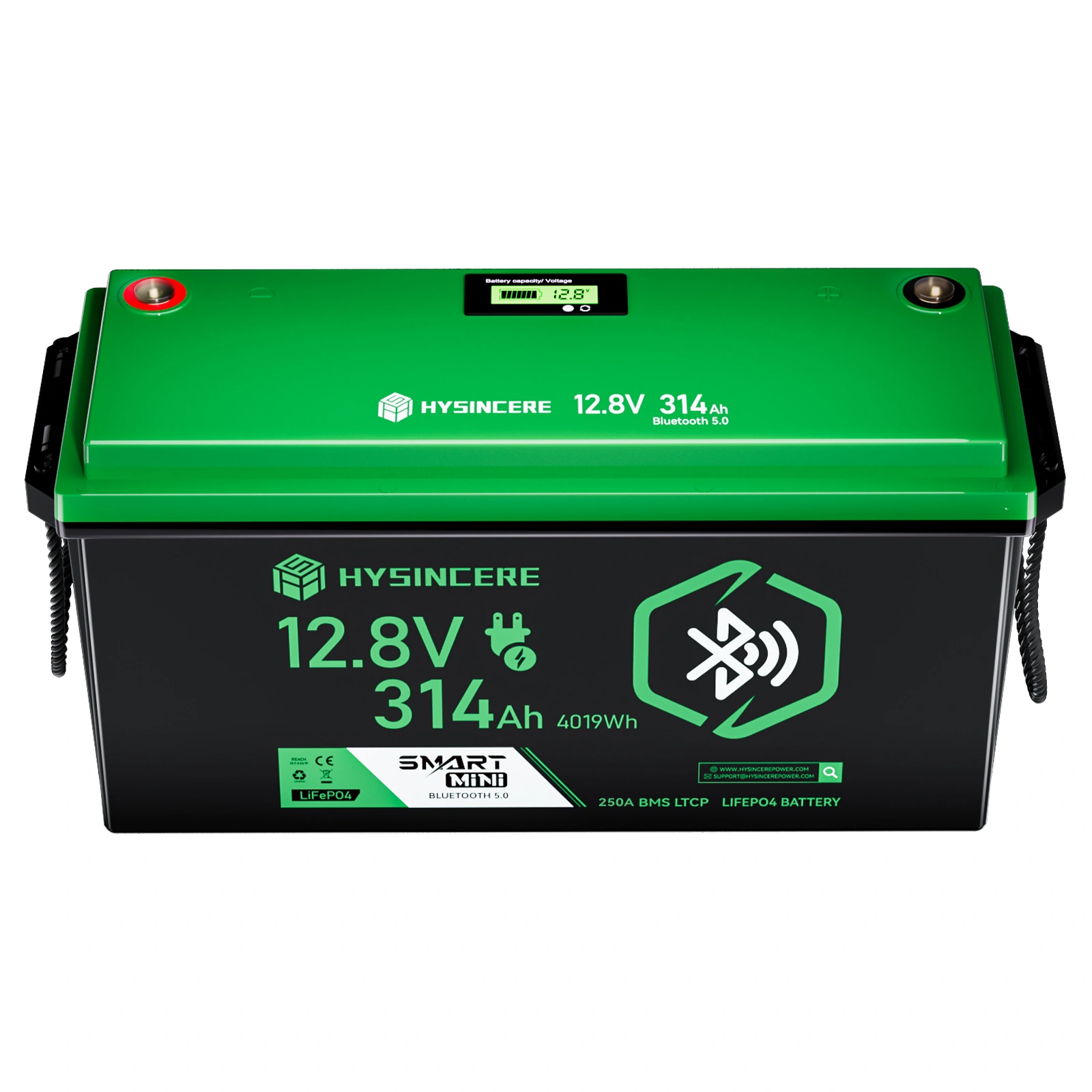

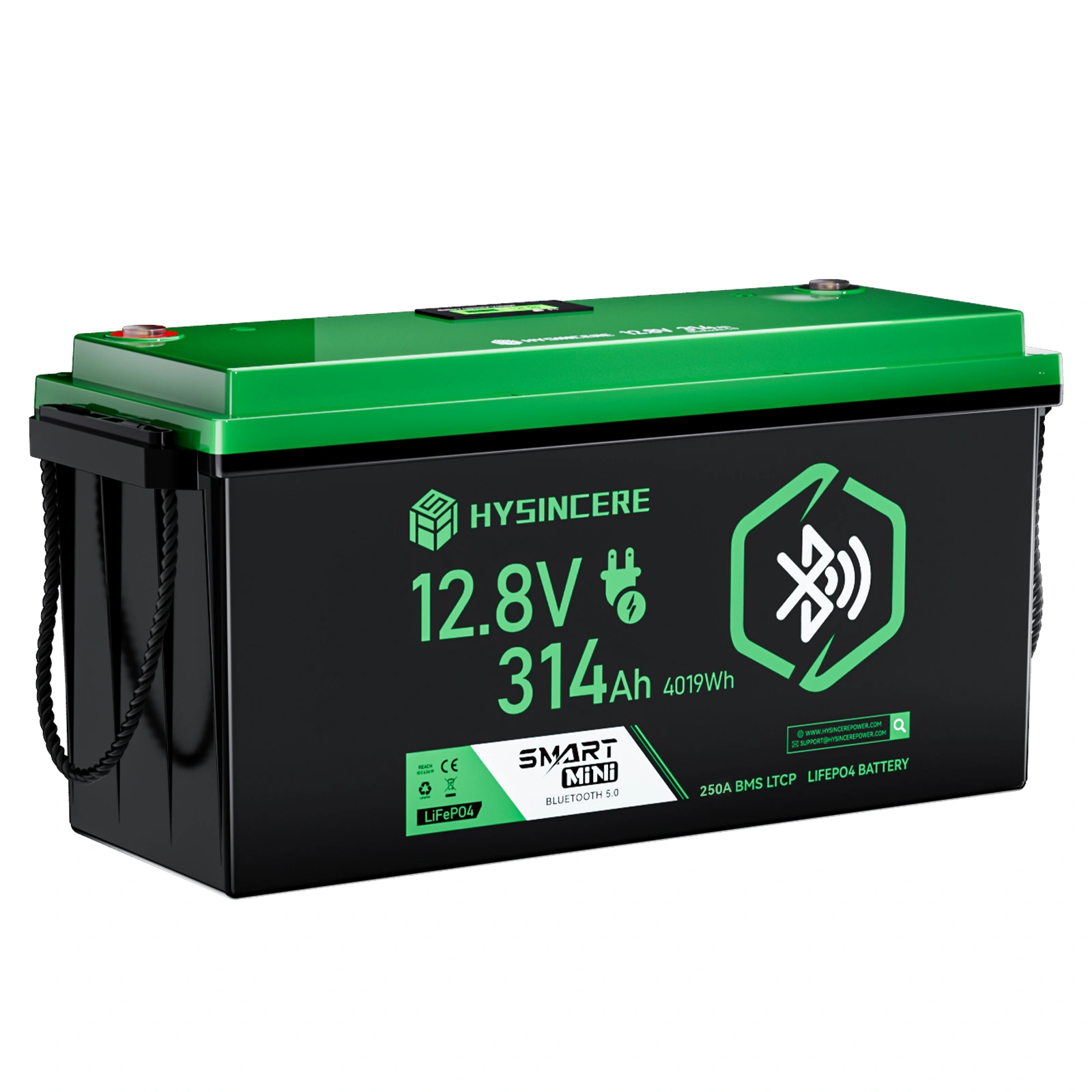

LF12314N-B 12.8V 314Ah LiFePO4 Battery for High-Capacity Solar Storage with Bluetooth App

The LF12314N-B is a 12.8V 314Ah Bluetooth LiFePO4 Battery from the Hysincere Bluetooth Connection Series, designed for high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage. It delivers 4019.2Wh rated energy with 200A continuous discharge performance. It also supports Bluetooth smart app monitoring.

The LF12314N-B is a 12.8V 314Ah Bluetooth LiFePO4 Battery from the Hysincere Bluetooth Connection Series, designed for high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage. It delivers 4019.2Wh rated energy with 200A continuous discharge performance. It also supports Bluetooth smart app monitoring.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF12314N-B Smart BMS Protection for 200A Continuous Discharge

The LF12314N-B is designed with smart BMS protection to support safer charge and discharge operation in high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage. It supports 200A continuous discharge, 400A peak discharge, IP67 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

The LF12314N-B is designed with smart BMS protection to support safer charge and discharge operation in high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage. It supports 200A continuous discharge, 400A peak discharge, IP67 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF12314N-B ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF12314N-B is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 4019.2Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage.

The LF12314N-B is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 4019.2Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in high-capacity RV solar systems, home backup power and Bluetooth monitored energy storage.

Technical Specifications

LF12314N-B Product Parameters

Main Parameters
ModelLF12314N-BNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity314AhRated Energy4019.2Wh
Electrical Performance
Maximum Charge Current200AMaximum Continuous Discharge Current200A
Maximum Peak Discharge Current (5S)400AMaximum Series & Parallel4S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP67Protection LevelIP67
Physical & Installation
TerminalsM8Dimension522*240*218mm
Weight28kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenNO
Certification(EU) 2023/1542
Download Datasheet PDF

FAQ

What is the LF12314N-B and where is it used?

The LF12314N-B is intended for RV, marine, solar, off-grid and backup-power systems that benefit from app-based battery monitoring. Its listed core specifications are 12.8V nominal voltage, 314Ah nominal capacity, 4019.2Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF12314N-B be charged?

Use a charger whose chemistry, voltage and current settings match the LF12314N-B. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 200A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF12314N-B provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 200A, 5-second peak current 400A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF12314N-B?

For the LF12314N-B, the listed physical and environmental specifications are dimensions 522*240*218mm, weight 28kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF12314N-B be customized for an OEM project?

Hysincere can review the LF12314N-B for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: Bluetooth monitoring is a series feature; confirm the BMS and app configuration for the final order; listed series/parallel support: 4S4P; protection level: IP67. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
