Product Features

Stable Power Output

Delivers 2560Wh rated energy for lead-acid replacement, RV, marine, trolling motor and backup power applications.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 200A continuous discharge and 400A peak discharge for demanding loads.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term lithium replacement power.

Wide Temperature Operation

Supports charging from 0~+55°C and discharging from -20~+60°C for dependable outdoor and backup power use.

Hysincere Regular Version Series LiFePO4 battery application scenario for home solar energy storage

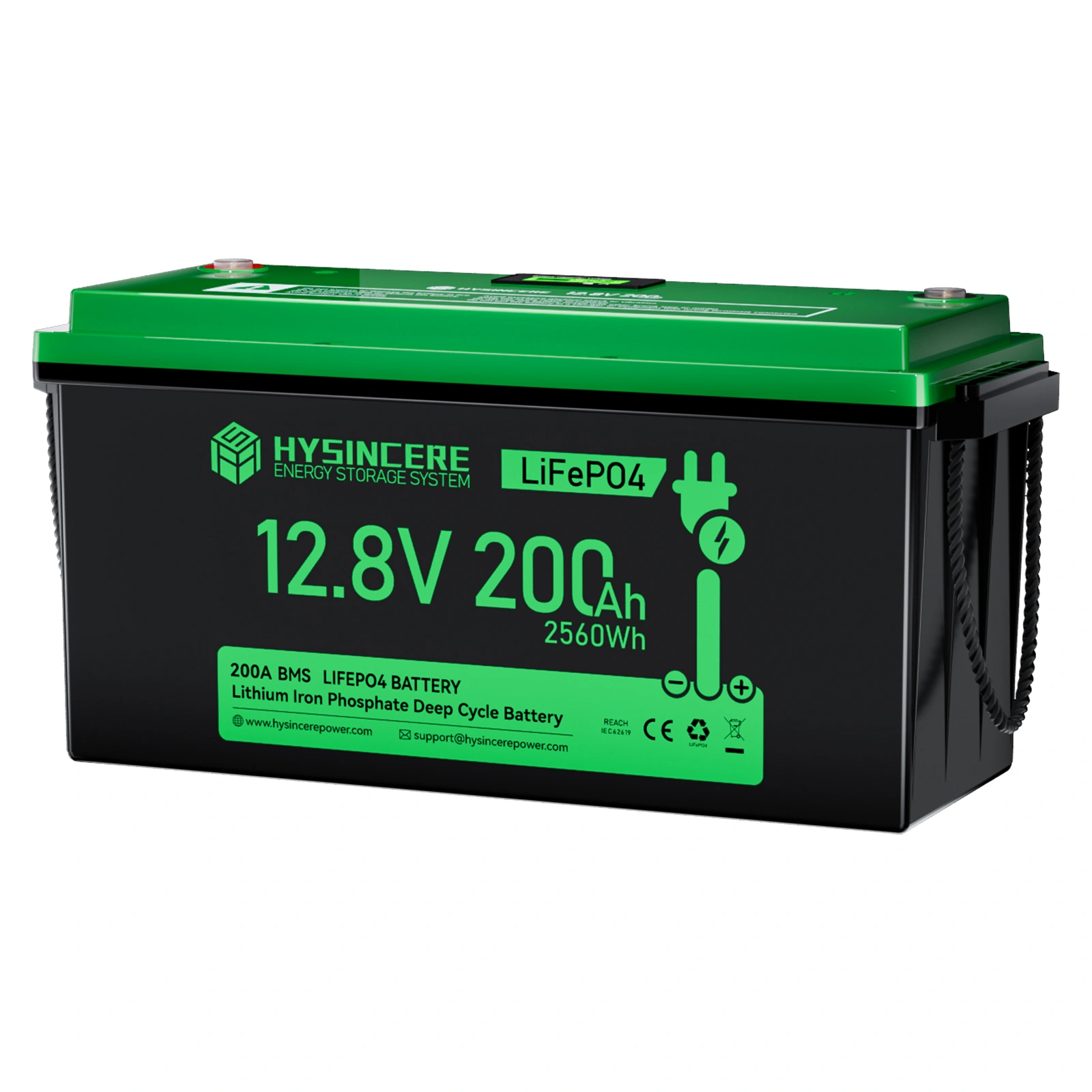

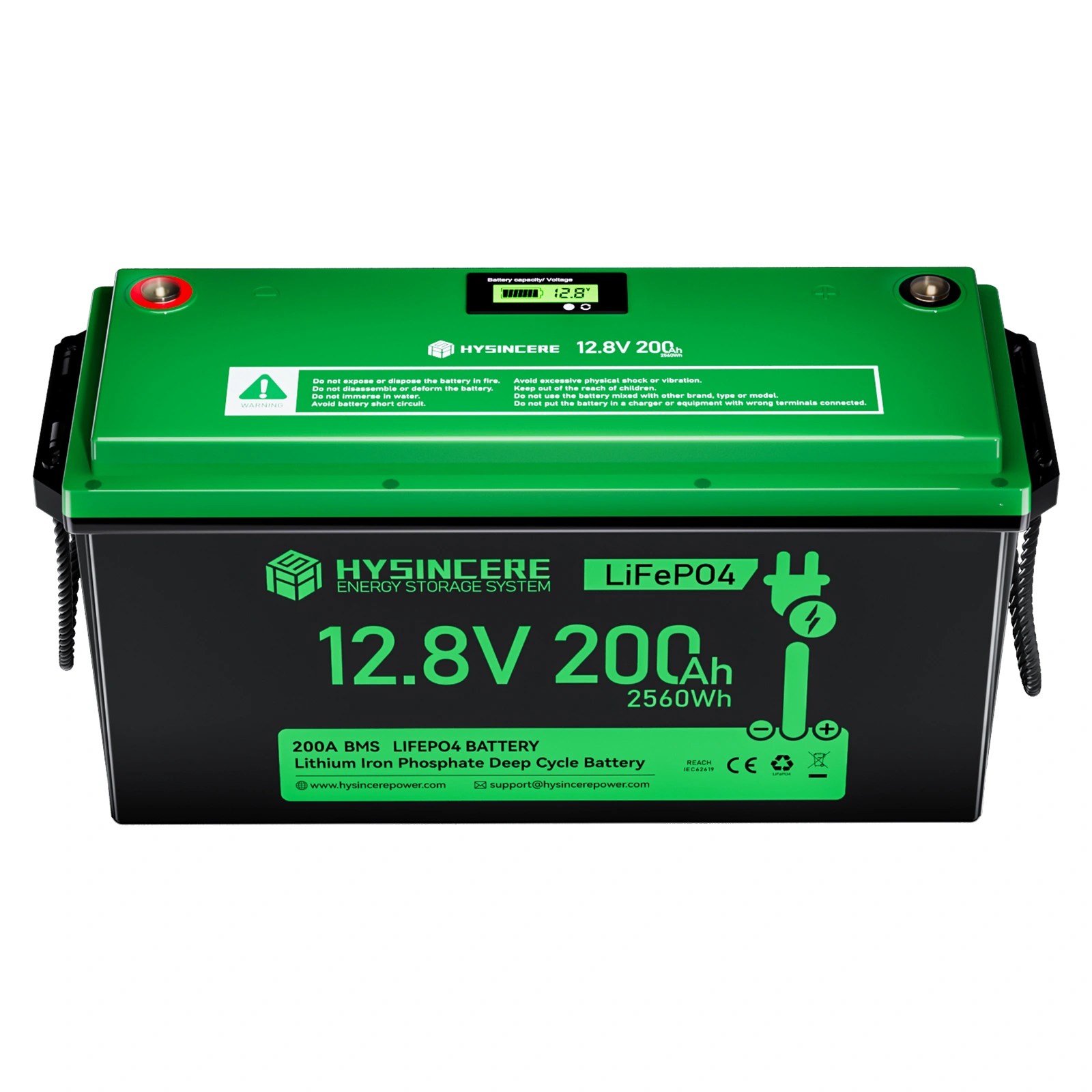

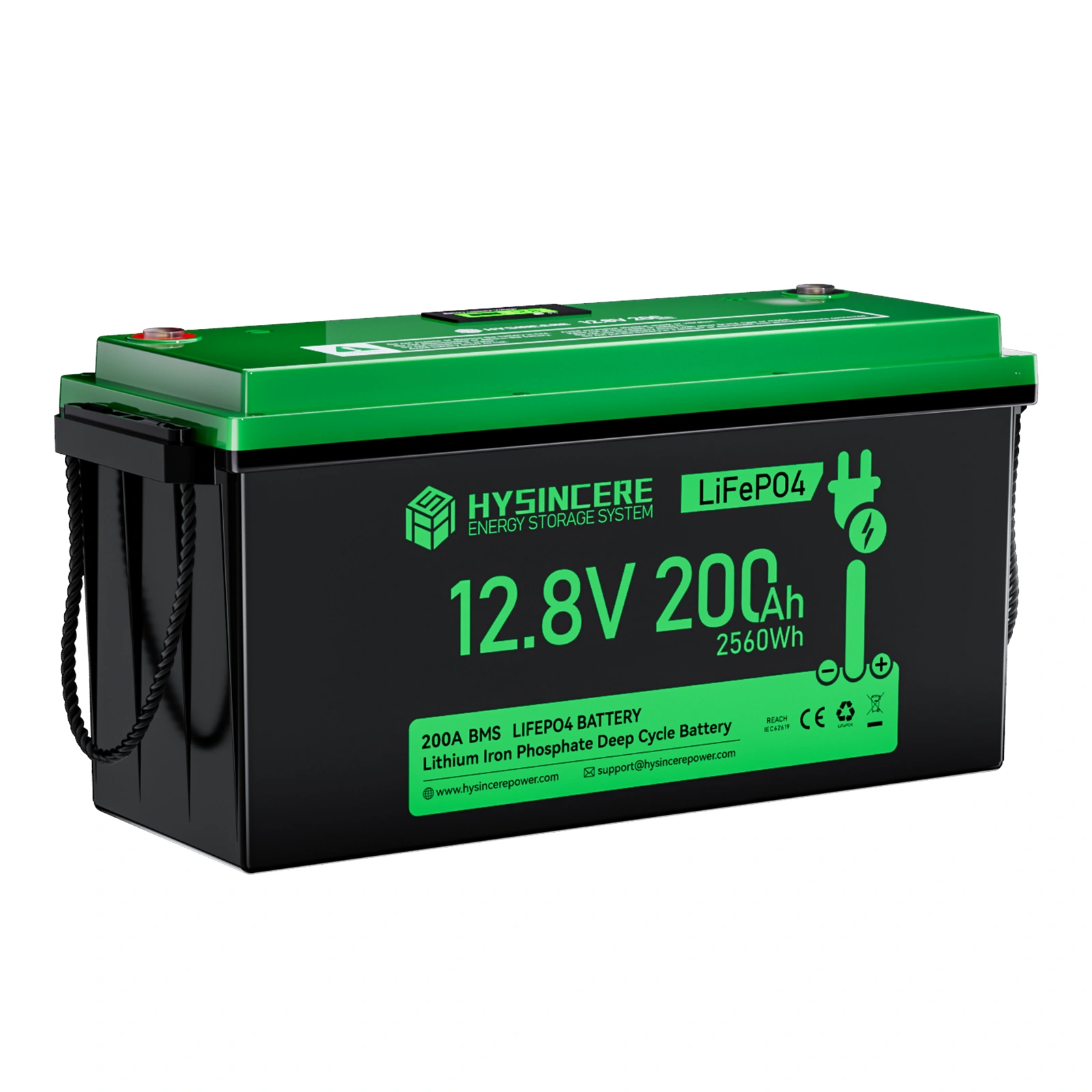

LF12200N-HL 12.8V 200Ah LiFePO4 Battery for RV, Solar and Backup Power

The LF12200N-HL is a 12.8V 200Ah LiFePO4 Battery from the Hysincere Regular Version Series, designed for high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems. It delivers 2560Wh rated energy with 200A continuous discharge performance.

The LF12200N-HL is a 12.8V 200Ah LiFePO4 Battery from the Hysincere Regular Version Series, designed for high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems. It delivers 2560Wh rated energy with 200A continuous discharge performance.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF12200N-HL Smart BMS Protection for 200A Continuous Discharge

The LF12200N-HL is designed with smart BMS protection to support safer charge and discharge operation in high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems. It supports 200A continuous discharge, 400A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

The LF12200N-HL is designed with smart BMS protection to support safer charge and discharge operation in high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems. It supports 200A continuous discharge, 400A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF12200N-HL ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF12200N-HL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 2560Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems.

The LF12200N-HL is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 2560Wh rated energy, 200A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in high-capacity RV power, home solar storage, marine energy and deep-cycle backup systems.

Technical Specifications

LF12200N-HL Product Parameters

Main Parameters
ModelLF12200N-HLNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity200AhRated Energy2560Wh
Electrical Performance
Maximum Charge Current200AMaximum Continuous Discharge Current200A
Maximum Peak Discharge Current (5S)400AMaximum Series & Parallel4S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP65Protection LevelIP65
Physical & Installation
TerminalsM8Dimension502*187*243mm
Weight22.3kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenRegular LCD Screen
Certification(EU) 2023/1542 CE MSDS UN38.3
Download Datasheet PDF

FAQ

What is the LF12200N-HL and where is it used?

The LF12200N-HL is intended for lead-acid replacement, RV, marine, solar and backup-power applications. Its listed core specifications are 12.8V nominal voltage, 200Ah nominal capacity, 2560Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF12200N-HL be charged?

Use a charger whose chemistry, voltage and current settings match the LF12200N-HL. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 200A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF12200N-HL provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 200A, 5-second peak current 400A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF12200N-HL?

For the LF12200N-HL, the listed physical and environmental specifications are dimensions 502*187*243mm, weight 22.3kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF12200N-HL be customized for an OEM project?

Hysincere can review the LF12200N-HL for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed series/parallel support: 4S4P; protection level: IP65. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
