Product Features

Stable Power Output

Delivers 1280Wh rated energy for lead-acid replacement, RV, marine, trolling motor and backup power applications.

Smart BMS Protection

Supports safer charge and discharge operation with intelligent battery management. Supports 120A continuous discharge and 300A peak discharge for demanding loads.

4000+ Cycle Life

Designed for 4000+ cycles at 25°C, 0.5C and 100% DOD, supporting long-term lithium replacement power.

Wide Temperature Operation

Supports charging from 0~+55°C and discharging from -20~+60°C for dependable outdoor and backup power use.

Hysincere Regular Version Series LiFePO4 battery application scenario for home solar energy storage

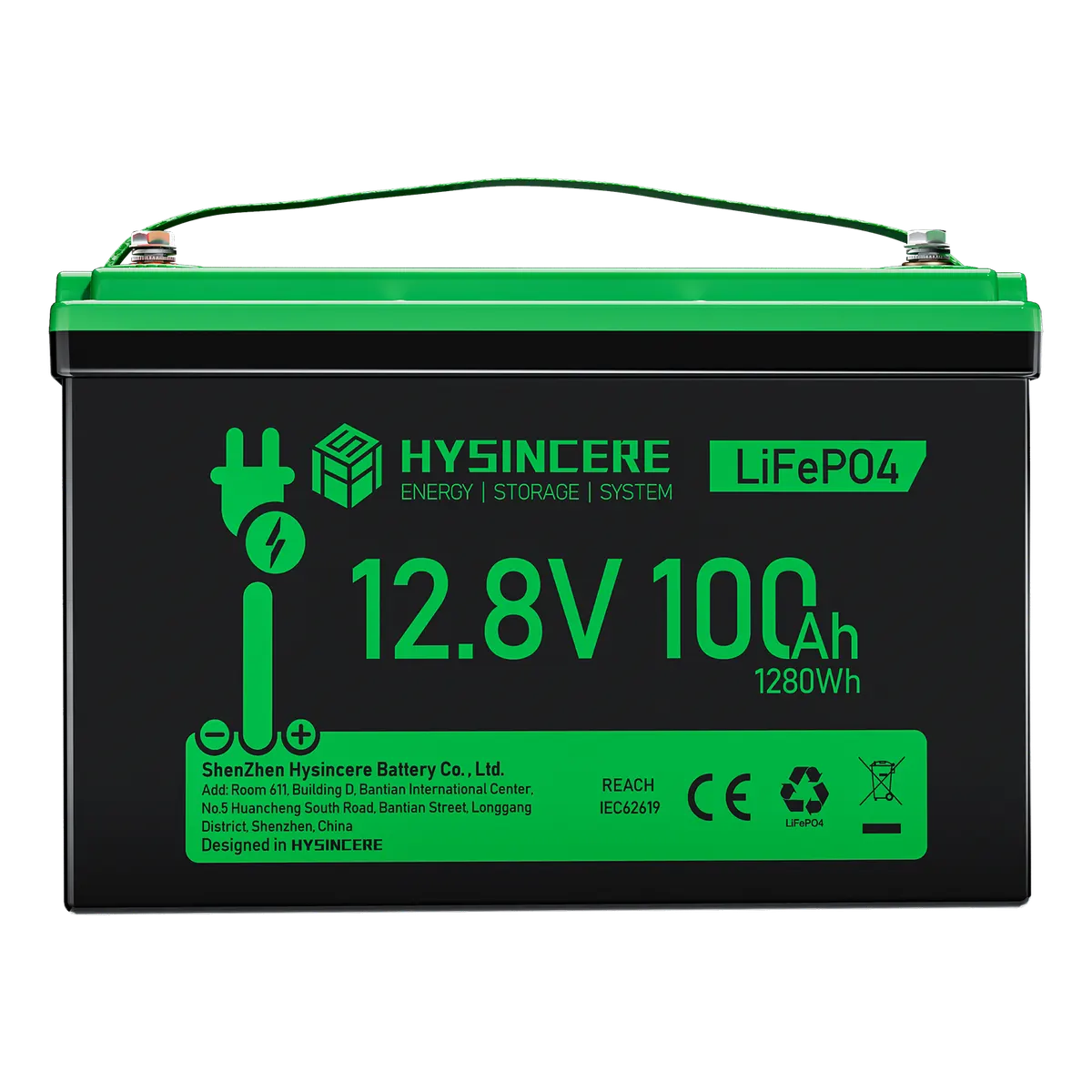

LF12100-HL-TM 12.8V 100Ah LiFePO4 Battery for Trolling Motor and Marine Power

The LF12100-HL-TM is a 12.8V 100Ah Trolling Motor LiFePO4 Battery from the Hysincere Regular Version Series, designed for trolling motors, marine power systems and deep-cycle outdoor power applications. It delivers 1280Wh rated energy with 120A continuous discharge performance.

The LF12100-HL-TM is a 12.8V 100Ah Trolling Motor LiFePO4 Battery from the Hysincere Regular Version Series, designed for trolling motors, marine power systems and deep-cycle outdoor power applications. It delivers 1280Wh rated energy with 120A continuous discharge performance.

Hysincere battery smart BMS protection technology for LiFePO4 and energy storage battery systems

LF12100-HL-TM Smart BMS Protection for 120A Continuous Discharge

The LF12100-HL-TM is designed with smart BMS protection to support safer charge and discharge operation in trolling motors, marine power systems and deep-cycle outdoor power applications. It supports 120A continuous discharge, 300A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

The LF12100-HL-TM is designed with smart BMS protection to support safer charge and discharge operation in trolling motors, marine power systems and deep-cycle outdoor power applications. It supports 120A continuous discharge, 300A peak discharge, IP65 protection, charging from 0~+55°C and discharging from -20~+60°C. It supports 4S4P configuration for flexible system design.

Hysincere deep cycle battery life technology visual for long-lasting rechargeable battery performance

LF12100-HL-TM ≥4000 Cycle Life Deep-Cycle LiFePO4 Battery

The LF12100-HL-TM is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1280Wh rated energy, 120A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in trolling motors, marine power systems and deep-cycle outdoor power applications.

The LF12100-HL-TM is built for long service life with ≥4000 cycle life, supporting stable rechargeable battery performance for B2B power applications. With 1280Wh rated energy, 120A continuous discharge and 5-year warranty support, it is suitable for reliable long-term use in trolling motors, marine power systems and deep-cycle outdoor power applications.

Technical Specifications

LF12100-HL-TM Product Parameters

Main Parameters
ModelLF12100-HL-TMNominal Voltage12.8V
Maximum Charge Voltage14.6VDischarge Cut-off Voltage10V
Nominal Capacity100AhRated Energy1280Wh
Electrical Performance
Maximum Charge Current100AMaximum Continuous Discharge Current120A
Maximum Peak Discharge Current (5S)300AMaximum Series & Parallel4S4P
Temperature & Protection
Charge Temperature0~+55°CDischarge Temperature-20~+60°C
IP Rating of EnclosureIP65Protection LevelIP65
Physical & Installation
TerminalsM8Dimension229*144*213mm
Weight8.95kg
Lifecycle & Compliance
Cycle Life≥4000LCD ScreenRegular LCD Screen
Certification(EU) 2023/1542 CE MSDS UN38.3
Download Datasheet PDF

FAQ

What is the LF12100-HL-TM and where is it used?

The LF12100-HL-TM is intended for lead-acid replacement, RV, marine, solar and backup-power applications. Its listed core specifications are 12.8V nominal voltage, 100Ah nominal capacity, 1280Wh rated energy. Final compatibility must be confirmed against the equipment voltage, load and mechanical space.

How should the LF12100-HL-TM be charged?

Use a charger whose chemistry, voltage and current settings match the LF12100-HL-TM. The listed charging limits are maximum charge voltage 14.6V, maximum charge current 100A. Charger profile, connector polarity and BMS settings should be verified before use.

What discharge performance does the LF12100-HL-TM provide?

Discharge capability must be matched to the equipment's continuous and startup loads. The listed values are discharge cut-off voltage 10V, maximum continuous discharge current 120A, 5-second peak current 300A, cycle life ≥4000. Cable gauge, fusing and protection settings must be sized for the complete system.

What are the size, weight and temperature limits of the LF12100-HL-TM?

For the LF12100-HL-TM, the listed physical and environmental specifications are dimensions 229*144*213mm, weight 8.95kg, charge temperature 0~+55°C, discharge temperature -20~+60°C. Connector, wire and enclosure options can change final dimensions and weight.

Can the LF12100-HL-TM be customized for an OEM project?

Hysincere can review the LF12100-HL-TM for OEM/ODM integration, including connector, wire, enclosure, BMS and labeling requirements. Product-specific notes: listed series/parallel support: 4S4P; protection level: IP65. Provide the device voltage, normal and peak current, installation space, operating temperature and required certifications for engineering confirmation.
